ii. PSM. Metallized Polypropylene Film Capacitor A.C. Application - Radial Dipped

PSM are constructed with special series metallized polypropylene film dielectric, tinned copper wire leads and
flame retardant epoxy resin coating, in non-inductive type. Electronic lighting (i.e. car headlamp and ballast), pulse applications with high A.C. voltage and medium current.

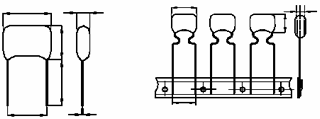

Drawing:

Outline Drawing
Appearance
Construction



Features:

  • Self-healing property
  • High corona starting voltage (csv)
  • Low DF and inherent temperature rise
  • High current rating and high dv/dt
  • High reliability and excellent long term stability

Specification:

  • Operating temperature: -40℃~85℃
  • Capacitance range: 0.001µF~0.12µF
  • Capacitance tolerance: ±5%(J), ±10%(K), ±20%(M)
  • Rated voltage: 250VAC(630VDC), 400VAC(1000VDC), 500VAC(1250VDC), 700VAC(1600VDC), 900VAC (2000VDC)
  • Dissipation factor: 0.1% max at 1KHZ, 25℃
  • Insulation resistance: >50000 MΩ (at 25℃) (measured at 100Vdc 1minute)

Performance:

Test Characteristics Test Methods JIS C 5102 Performance
Withstand voltage: Between terminals Apply 1.5 times of rated voltage for 60 sec.
charge discharge current must be 1A max		 Shall be no abnormality
Withstand voltage: Between terminals & enclosure Apply 2.0 times of rated voltage for 1 to 5 sec Shall be no abnormality
Insulation resistance: Between terminals Apply rated voltage ±15% for 60 sec. when rated voltage under 100V. Apply 100V ±15% when rated voltage from 100V to 500V at 20℃ ≧50,000MΩ
Insulation resistance: Between terminals & enclosure
Heat proof: Insulation resistance at 85℃ Testing temperature: 85±2℃ ≧50000MΩ
Heat proof: Rate of variation of capacitance at 85℃ Within +5% -2% of the value before test
Humidity test: Appearance Temperature: 40±2 ; Humidity: 90-95% RH
Testing time: 500 +24 -0 Hrs. Apply voltage: rated voltage. After testing, leave it for about 16 Hrs. at standard condition Withstand voltage is 130% rated voltage, 60 sec.		 Shall be no abnormality
Humidity test: Withstand voltage Shall be no abnormality
Humidity test: Insulation resistance ≧15000MΩ
Humidity test: Dissipation factor 0.0011 (1.1%) Max.
Humidity test: Rate of variation capacitance Within ±10% of the value before test
Reference Standard GB/T 14579 (IEC 60384-17; IEC 60384-16) / JIS C 5102

Dimensions:

250VAC (1 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PSM153□2JA8A5□□□□□
0.015
18.0
12.5
7.5
15.0
0.8
250
PSM183□2JA8A5□□□□□
0.018
18.0
12.5
7.5
15.0
0.8
250
PSM223□2JA8A5□□□□□
0.022
18.0
12.5
7.5
15.0
0.8
250
PSM273□2J28A5□□□□□
0.027
18.0
12.5
7.5
15.0
0.8
250
PSM333□2JA8A5□□□□□
0.033
18.0
13.0
8.0
15.0
0.8
250
PSM393□2JA8A5□□□□□
0.039
18.0
13.5
8.5
15.0
0.8
250
PSM473□2JA8A5□□□□□
0.047
18.0
14.0
9.0
15.0
0.8
250
PSM563□2JA8A5□□□□□
0.056
18.0
15.0
10.0
15.0
0.8
250
PSM683□2JA8A5□□□□□
0.068
18.0
15.5
10.5
15.0
0.8
250
PSM823□2JA8A5□□□□□
0.082
18.0
16.0
11.0
15.0
0.8
250
PSM104□2JA8A5□□□□□
0.10
18.0
16.5
11.5
15.0
0.8
250
PSM124□2JA8A5□□□□□
0.12
18.0
18.0
13.0
15.0
0.8
250

400VAC (2 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PSM682□3AA8A5□□□□□
0.0068
18.0
12.5
7.5
15.0
0.8
1000
PSM822□3AA8A5□□□□□
0.0082
18.0
12.5
7.5
15.0
0.8
1000
PSM103□3AA8A5□□□□□
0.010
18.0
13.0
8.0
15.0
0.8
1000
PSM123□3AA8A5□□□□□
0.012
18.0
13.5
8.5
15.0
0.8
1000
PSM153□3AA8A5□□□□□
0.015
18.0
14.0
9.0
15.0
0.8
1000
PSM183□3AA8A5□□□□□
0.018
18.0
15.0
10.0
15.0
0.8
1000
PSM223□3AA8A5□□□□□
0.022
18.0
15.5
10.5
15.0
0.8
1000
PSM273□3AA8A5□□□□□
0.027
18.0
16.0
11.0
15.0
0.8
1000
PSM333□3AA8A5□□□□□
0.033
18.0
16.5
11.5
15.0
0.8
1000
PSM393□3AA8A5□□□□□
0.039
18.0
17.5
12.5
15.0
0.8
1000
PSM473□3AA8A5□□□□□
0.047
18.0
18.0
13.0
15.0
0.8
1000
PSM393□3AB6B2□□□□□
0.039
26.5
17.0
9.0
22.5
0.8
500
PSM473□3AB6B2□□□□□
0.047
26.5
17.5
9.5
22.5
0.8
500
PSM563□3AB6B2□□□□□
0.056
26.5
18.0
10.0
22.5
0.8
500
PSM683□3AB6B2□□□□□
0.068
26.5
18.5
11.5
22.5
0.8
500
PSM823□3AB6B2□□□□□
0.082
26.5
20.0
12.5
22.5
0.8
500
PSM104□3AB6B2□□□□□
0.10
26.5
20.5
13.0
22.5
0.8
500

500VAC (2 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PSM152□3BA8A5□□□□□
0.0015
18.0
13.0
8.0
15.0
0.8
1300
PSM182□3BA8A5□□□□□
0.0018
18.0
13.0
8.0
15.0
0.8
1300
PSM222□3BA8A5□□□□□
0.0022
18.0
13.0
8.0
15.0
0.8
1300
PSM272□3BA8A5□□□□□
0.0027
18.0
13.0
8.0
15.0
0.8
1300
PSM332□3BA8A5□□□□□
0.0033
18.0
13.0
8.0
15.0
0.8
1300
PSM392□3BA8A5□□□□□
0.0039
18.0
13.0
8.0
15.0
0.8
1300
PSM472□3BA8A5□□□□□
0.0047
18.0
13.0
8.0
15.0
0.8
1300
PSM562□3BA8A5□□□□□
0.0056
18.0
13.5
8.5
15.0
0.8
1300
PSM682□3BA8A5□□□□□
0.0068
18.0
14.0
9.0
15.0
0.8
1300
PSM822□3BA8A5□□□□□
0.0082
18.0
14.0
9.0
15.0
0.8
1300
PSM103□3BA8A5□□□□□
0.010
18.0
15.0
10.0
15.0
0.8
1300
PSM123□3BA8A5□□□□□
0.012
18.0
15.5
10.5
15.0
0.8
1300
PSM153□3BA8A5□□□□□
0.015
18.0
16.0
11.0
15.0
0.8
1300
PSM188□3BA8A5□□□□□
0.018
18.0
16.5
11.5
15.0
0.8
1300
PSM223□3BA8A5□□□□□
0.022
18.0
17.5
12.5
15.0
0.8
1300
PSM273□3BA8A5□□□□□
0.027
18.0
18.0
13.0
15.0
0.8
1300
PSM183□3BB6B2□□□□□
0.018
26.5
16.5
8.5
22.5
0.8
700
PSM223□3BB6B2□□□□□
0.022
26.5
17.0
9.0
22.5
0.8
700
PSM273□3BB6B2□□□□□
0.027
26.5
17.5
9.5
22.5
0.8
700
PSM333□3BB6B2□□□□□
0.033
26.5
18.0
10.0
22.5
0.8
700
PSM393□3BB6B2□□□□□
0.039
26.5
18.5
11.0
22.5
0.8
700
PSM473□3BB6B2□□□□□
0.047
26.5
20.5
12.5
22.5
0.8
700
PSM563□3BB6B2□□□□□
0.056
26.5
21.0
13.0
22.5
0.8
700
PSM683□3BB6B2□□□□□
0.068
26.5
21.5
13.5
22.5
0.8
700
PSM823□3BC2B7□□□□□
0.082
32.0
22.0
14.0
27.5
0.8
500
PSM104□3BC2B7□□□□□
0.10
32.0
22.0
14.0
27.5
0.8
500

700VAC (3 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PSM102□3CA8A5□□□□□
0.0010
18.0
12.5
7.5
15.0
0.8
3000
PSM122□3CA8A5□□□□□
0.0012
18.0
12.5
7.5
15.0
0.8
3000
PSM152□3CA8A5□□□□□
0.0015
18.0
12.5
7.5
15.0
0.8
3000
PSM182□3CA8A5□□□□□
0.0018
18.0
12.5
7.5
15.0
0.8
3000
PSM222□3CA8A5□□□□□
0.0022
18.0
12.5
7.5
15.0
0.8
3000
PSM272□3CA8A5□□□□□
0.0027
18.0
12.5
7.5
15.0
0.8
3000
PSM332□3CA8A5□□□□□
0.0033
18.0
13.0
8.0
15.0
0.8
3000
PSM392□3CA8A5□□□□□
0.0039
18.0
13.5
8.5
15.0
0.8
3000
PSM472□3CA8A5□□□□□
0.0047
18.0
13.5
8.5
15.0
0.8
3000
PSM562□3CA8A5□□□□□
0.0056
18.0
14.0
9.0
15.0
0.8
3000
PSM682□3CA8A5□□□□□
0.0068
18.0
15.0
10.0
15.0
0.8
3000
PSM822□3CA8A5□□□□□
0.0082
18.0
15.5
10.5
15.0
0.8
3000
PSM103□3CA8A5□□□□□
0.010
18.0
16.0
11.0
15.0
0.8
3000
PSM123□3CA8A5□□□□□
0.012
18.0
17.5
12.5
15.0
0.8
3000
PSM153□3CA8A5□□□□□
0.015
18.0
18.0
13.0
15.0
0.8
3000
PSM822□3CB6B2□□□□□
0.0082
26.5
16.5
8.5
22.5
0.8
1300
PSM103□3CB6B2□□□□□
0.010
26.5
16.5
8.5
22.5
0.8
1300
PSM123□3CB6B2□□□□□
0.012
26.5
16.5
8.5
22.5
0.8
1300
PSM153□3CB6B2□□□□□
0.015
26.5
17.0
9.0
22.5
0.8
1300
PSM183□3CB6B2□□□□□
0.018
26.5
17.5
9.5
22.5
0.8
1300
PSM223□3CB6B2□□□□□
0.022
26.5
18.5
11.0
22.5
0.8
1300
PSM273□3CB6B2□□□□□
0.027
26.5
19.0
11.5
22.5
0.8
1300
PSM333□3CB6B2□□□□□
0.033
26.5
20.0
12.5
22.5
0.8
1300
PSM393□3CB6B2□□□□□
0.039
26.5
20.5
13.0
22.5
0.8
1300
PSM473□3CB6B2□□□□□
0.047
26.5
22.0
14.0
22.5
0.8
1300

900VAC (4 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PSM102□3DB6B2□□□□□
0.0010
26.5
16.5
8.5
22.5
0.8
2500
PSM122□3DB6B2□□□□□
0.0012
26.5
16.5
8.5
22.5
0.8
2500
PSM152□3DB6B2□□□□□
0.0015
26.5
16.5
8.5
22.5
0.8
2500
PSM182□3DB6B2□□□□□
0.0018
26.5
16.5
8.5
22.5
0.8
2500
PSM222□3DB6B2□□□□□
0.0022
26.5
16.5
8.5
22.5
0.8
2500
PSM272□3DB6B2□□□□□
0.0027
26.5
16.5
8.5
22.5
0.8
2500
PSM332□3DB6B2□□□□□
0.0033
26.5
16.5
8.5
22.5
0.8
2500
PSM392□3DB6B2□□□□□
0.0039
26.5
16.5
8.5
22.5
0.8
2500
PSM472□3DB6B2□□□□□
0.0047
26.5
16.5
8.5
22.5
0.8
2500
PSM562□3DB6B2□□□□□
0.0056
26.5
16.5
8.5
22.5
0.8
2500
PSM682□3DB6B2□□□□□
0.0068
26.5
17.0
9.0
22.5
0.8
2500
PSM822□3DB6B2□□□□□
0.0082
26.5
17.5
9.5
22.5
0.8
2500
PSM103□3DB6B2□□□□□
0.010
26.5
18.0
10.0
22.5
0.8
2500
PSM123□3DB6B2□□□□□
0.012
26.5
18.5
11.0
22.5
0.8
2500
PSM153□3DB6B2□□□□□
0.015
26.5
20.0
12.5
22.5
0.8
2500
PSM183□3DB6B2□□□□□
0.018
26.5
20.5
13.0
22.5
0.8
2500
PSM223□3DB6B2□□□□□
0.022
26.5
21.5
12.5
22.5
0.8
2500
