iv. PSH. Double Sided Metallized Polypropylene Film Capacitor A.C. Application - Radial Dipped

PSH are double sided metallized structure widely used in electronic lighting (i.e. car headlamp and ballast), pulse
applications with high A.C. voltage and HIGH current.

Drawing:

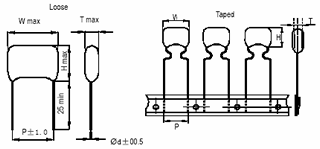

Outline Drawing
Appearance

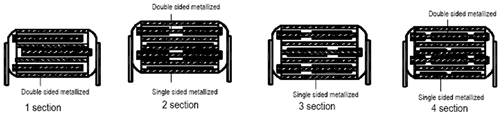

Construction



Features:

  • Low loss and small inherent temperature rise
  • Negative temperature coefficient of capacitance
  • Excellent active and passive flame resistant abilities

Specification:

  • Operating temperature: -40℃~105℃
  • Capacitance range: 0.001µF~0.1µF
  • Capacitance tolerance: ±2%(G); ±3%(H); ±5%(J), ±10%(K), ±20%(M)
  • Rated voltage: 250VAC(630VDC); 300VAC(800VDC); 400VAC(1000VDC); 500VAC(1250VDC); 700VAC(1600VDC); 900VAC(2000VDC)
  • Dissipation factor: 0.1% max at 1KHZ, 25℃
  • Insulation resistance: C≤0.33µF ≧50000 MΩ C>0.33µF ≧15000 MΩ

Performance:

Test Characteristics Test Methods JIS C 5102 Performance
Withstand voltage: Between terminals Apply 1.5 times of rated voltage for 60 sec.
charge discharge current must be 1A max		 Shall be no abnormality
Withstand voltage: Between terminals & enclosure Apply 2.0 times of rated voltage for 1 to 5 sec Shall be no abnormality
Insulation resistance: Between terminals Apply rated voltage ±15% for 60 sec. when rated voltage under 100V. Apply 100V ±15% when rated voltage from 100V to 500V at 20℃ ≤0.33µF ≧30,000MΩ
Insulation resistance: Between terminals & enclosure >0.33µF≧10,000MΩ•µF
Heat proof: Insulation resistance at 85℃ Testing temperature: 85±2℃ ≤0.33µF≧900MΩ at 85℃
>0.33µF≧300MΩ•µF at 85℃
Heat proof: Rate of variation of capacitance at 85℃ Within +5% -2% of the value before test
Humidity test: Appearance Temperature: 40±2 ; Humidity: 90-95% RH
Testing time: 500 +24 -0 Hrs. Apply voltage: rated voltage. After testing, leave it for about 16 Hrs. at standard condition Withstand voltage is 130% rated voltage, 60 sec.		 Shall be no abnormality
Humidity test: Withstand voltage Shall be no abnormality
Humidity test: Insulation resistance ≤0.33µF≧2700MΩ ;
>0.33µF≧900Ω•µF
Humidity test: Dissipation factor 0.011 (1.1%) Max.
Humidity test: Rate of variation capacitance Within ±10% of the value before test
Reference Standard GB/T 14579 (IEC 60384-17; IEC 60384-16) / JIS C 5102

Dimensions:

250VAC (1 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PSH103□2JA3A0□□□□□
0.010
13.0
10.5
6.5
10.0
0.6
1500
PSH123□2JA3A0□□□□□
0.012
13.0
11.0
7.0
10.0
0.6
1500
PSH153□2JA3A0□□□□□
0.015
13.0
12.5
7.5
10.0
0.6
1500
PSH183□2JA3A0□□□□□
0.018
13.0
13.5
8.5
10.0
0.6
1500
PSH223□2JA3A0□□□□□
0.022
13.0
14.0
9.0
10.0
0.6
1500
PSH273□2JA8A5□□□□□
0.027
18.0
14.0
9.0
15.0
0.8
900
PSH333□2JA8A5□□□□□
0.033
18.0
14.0
9.0
15.0
0.8
900
PSH393□2JA8A5□□□□□
0.039
18.0
14.0
9.0
15.0
0.8
900
PSH473□2JA8A5□□□□□
0.047
18.0
15.0
10.0
15.0
0.8
900
PSH563□2JA8A5□□□□□
0.056
18.0
15.5
10.5
15.0
0.8
900
PSH683□2JA8A5□□□□□
0.068
18.0
16.0
11.0
15.0
0.8
900
PSH823□2JA8A5□□□□□
0.082
18.0
17.5
12.5
15.0
0.8
900
PSH104□2JA8A5□□□□□
0.10
18.0
18.0
13.0
15.0
0.8
900

300VAC (2 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PSH103□2KA8A5□□□□□
0.010
18.0
12.5
7.5
15.0
0.6
2500
PSH123□2KA8A5□□□□□
0.012
18.0
12.5
7.5
15.0
0.6
2500
PSH153□2KA8A5□□□□□
0.015
18.0
12.5
7.5
15.0
0.6
2500
PSH183□2KA8A5□□□□□
0.018
18.0
13.0
8.0
15.0
0.6
2500
PSH223□2KA8A5□□□□□
0.022
18.0
13.5
8.5
15.0
0.6
2500
PSH273□2KA8A5□□□□□
0.027
18.0
14.0
9.0
15.0
0.8
2500
PSH333□2KA8A5□□□□□
0.033
18.0
15.0
10.0
15.0
0.8
2500
PSH393□2KA8A5□□□□□
0.039
18.0
15.5
10.5
15.0
0.8
2500
PSH473□2KA8A5□□□□□
0.047
18.0
16.5
11.5
15.0
0.8
2500
PSH563□2KA8A5□□□□□
0.056
18.0
17.5
12.5
15.0
0.8
2500
PSH683□2KA8A5□□□□□
0.068
18.0
18.0
13.0
15.0
0.8
2500
PSH563□2KB6B2□□□□□
0.056
26.5
16.5
8.5
22.5
0.8
1500
PSH683□2KB6B2□□□□□
0.068
26.5
18.0
10.0
22.5
0.8
1500
PSH823□2KB6B2□□□□□
0.082
26.5
18.5
11.0
22.5
0.8
1500
PSH104□2KB6B2□□□□□
0.10
26.5
19.0
11.5
22.5
0.8
1500

400VAC (2 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PSH562□3AA8A5□□□□□
0.0056
18.0
12.5
7.5
15.0
0.6
3300
PSH682□3AA8A5□□□□□
0.0068
18.0
12.5
7.5
15.0
0.6
3300
PSH822□3AA8A5□□□□□
0.0082
18.0
13.0
8.0
15.0
0.6
3300
PSH103□3AA8A5□□□□□
0.010
18.0
13.5
8.5
15.0
0.8
3300
PSH123□3AA8A5□□□□□
0.012
18.0
14.0
9.0
15.0
0.8
3300
PSH153□3AA8A5□□□□□
0.015
18.0
15.0
10.0
15.0
0.8
3300
PSH183□3AA8A5□□□□□
0.018
18.0
15.5
10.5
15.0
0.8
3300
PSH223□3AA8A5□□□□□
0.022
18.0
16.0
11.0
15.0
0.8
3300
PSH273□3AA8A5□□□□□
0.027
18.0
17.5
12.5
15.0
0.8
3300
PSH333□3AA8A5□□□□□
0.033
18.0
18.0
13.0
15.0
0.8
3300
PSH273□3AB6B2□□□□□
0.027
26.5
16.5
8.5
22.5
0.8
2100
PSH333□3AB6B2□□□□□
0.033
26.5
17.5
9.5
22.5
0.8
2100
PSH393□3AB6B2□□□□□
0.039
26.5
18.0
10.0
22.5
0.8
2100
PSH473□3AB6B2□□□□□
0.047
26.5
18.5
11.0
22.5
0.8
2100
PSH563□3AB6B2□□□□□
0.056
26.5
19.0
11.5
22.5
0.8
2100
PSH683□3AB6B2□□□□□
0.068
26.5
20.0
12.5
22.5
0.8
2100
PSH823□3AB6B2□□□□□
0.082
26.5
20.5
13.0
22.5
0.8
2100
PSH104□3AB6B2□□□□□
0.10
26.5
21.5
13.5
22.5
0.8
2100

500VAC (2 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PSH102□3BA8A5□□□□□
0.0010
18.0
12.5
7.5
15.0
0.6
4500
PSH122□3BA8A5□□□□□
0.0012
18.0
12.5
7.5
15.0
0.6
4500
PSH152□3BA8A5□□□□□
0.0015
18.0
12.5
7.5
15.0
0.6
4500
PSH182□3BA8A5□□□□□
0.0018
18.0
12.5
7.5
15.0
0.8
4500
PSH222□3BA8A5□□□□□
0.0022
18.0
12.5
7.5
15.0
0.8
4500
PSH272□3BA8A5□□□□□
0.0027
18.0
12.5
7.5
15.0
0.8
4500
PSH332□3BA8A5□□□□□
0.0033
18.0
12.5
7.5
15.0
0.8
4500
PSH392□3BA8A5□□□□□
0.0039
18.0
12.5
7.5
15.0
0.8
4500
PSH472□3BA8A5□□□□□
0.0047
18.0
12.5
7.5
15.0
0.8
4500
PSH562□3BA8A5□□□□□
0.0056
18.0
13.0
8.0
15.0
0.8
4500
PSH682□3BA8A5□□□□□
0.0068
18.0
13.5
8.5
15.0
0.8
4500
PSH822□3BA8A5□□□□□
0.0082
18.0
14.0
9.0
15.0
0.8
4500
PSH103□3BA8A5□□□□□
0.010
18.0
15.0
10.0
15.0
0.8
4500
PSH123□3BA8A5□□□□□
0.012
18.0
15.5
10.5
15.0
0.8
4500
PSH153□3BA8A5□□□□□
0.015
18.0
16.0
11.0
15.0
0.8
4500
PSH183□3BA8A5□□□□□
0.018
18.0
17.5
12.5
15.0
0.8
4500
PSH223□3BA8A5□□□□□
0.022
18.0
18.0
13.0
15.0
0.8
4500
PSH183□3BB6B2□□□□□
0.018
26.5
17.0
9.0
22.5
0.8
2500
PSH223□3BB6B2□□□□□
0.022
26.5
17.5
9.5
22.5
0.8
2500
PSH273□3BB6B2□□□□□
0.027
26.5
18.0
10.0
22.5
0.8
2500
PSH333□3BB6B2□□□□□
0.033
26.5
18.5
11.0
22.5
0.8
2500
PSH393□3BB6B2□□□□□
0.039
26.5
20.0
12.5
22.5
0.8
2500
PSH473□3BB6B2□□□□□
0.047
26.5
20.5
13.0
22.5
0.8
2500
PSH56□3BB6B2□□□□□
0.056
26.5
21.5
13.5
22.5
0.8
2500
PSH683□3BC2B7□□□□□
0.068
32.0
21.5
13.5
27.5
0.8
1100
PSH823□3BC2B7□□□□□
0.082
32.0
22.0
14.0
27.5
0.8
1100
PSH104□3BC2B7□□□□□
0.10
32.0
23.5
15.5
27.5
0.8
1100

700VAC (3 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PSH102□3CA8A5□□□□□
0.0010
18.0
12.5
7.5
15.0
0.8
9500
PSH122□3CA8A5□□□□□
0.0012
18.0
12.5
7.5
15.0
0.8
9500
PSH152□3CA8A5□□□□□
0.0015
18.0
12.5
7.5
15.0
0.8
9500
PSH182□3CA8A5□□□□□
0.0018
18.0
12.5
7.5
15.0
0.8
9500
PSH222□3CA8A5□□□□□
0.0022
18.0
13.0
8.0
15.0
0.8
9500
PSH272□3CA8A5□□□□□
0.0027
18.0
13.5
8.5
15.0
0.8
9500
PSH332□3CA8A5□□□□□
0.0033
18.0
14.0
9.0
15.0
0.8
9500
PSH392□3CA8A5□□□□□
0.0039
18.0
15.0
10.0
15.0
0.8
9500
PSH472□3CA8A5□□□□□
0.0047
18.0
15.5
10.5
15.0
0.8
9500
PSH562□3CA8A5□□□□□
0.0056
18.0
16.0
11.0
15.0
0.8
9500
PSH682□3CA8A5□□□□□
0.0068
18.0
16.5
11.5
15.0
0.8
9500
PSH822□3CA8A5□□□□□
0.0082
18.0
17.5
12.5
15.0
0.8
9500
PSH822□3CB6B2□□□□□
0.0082
26.5
16.5
8.5
22.5
0.8
4500
PSH103□3CB6B2□□□□□
0.010
26.5
17.5
9.0
22.5
0.8
4500
PSH123□3CB6B2□□□□□
0.012
26.5
17.5
9.5
22.5
0.8
4500
PSH153□3CB6B2□□□□□
0.015
26.5
18.5
11.0
22.5
0.8
4500
PSH183□3CB6B2□□□□□
0.018
26.5
20.0
12.5
22.5
0.8
4500
PSH223□3CB6B2□□□□□
0.022
26.5
20.5
13.0
22.5
0.8
4500
PSH273□3CB6B2□□□□□
0.027
26.5
21.5
13.5
22.5
0.8
4500

900VAC (4 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PSH102□3DB6B2□□□□□
0.0010
26.5
16.5
8.5
22.5
0.8
9500
PSH122□3DB6B2□□□□□
0.0012
26.5
16.5
8.5
22.5
0.8
9500
PSH152□3DB6B2□□□□□
0.0015
26.5
16.5
8.5
22.5
0.8
9500
PSH182□3DB6B2□□□□□
0.0018
26.5
16.5
8.5
22.5
0.8
9500
PSH222□3DB6B2□□□□□
0.0022
26.5
16.5
8.5
22.5
0.8
9500
PSH272□3DB6B2□□□□□
0.0027
26.5
16.5
8.5
22.5
0.8
9500
PSH332□3DB6B2□□□□□
0.0033
26.5
16.5
8.5
22.5
0.8
9500
PSH392□3DB6B2□□□□□
0.0039
26.5
16.5
8.5
22.5
0.8
9500
PSH472□3DB6B2□□□□□
0.0047
26.5
16.5
8.5
22.5
0.8
9500
PSH562□3DB6B2□□□□□
0.0056
26.5
17.0
9.0
22.5
0.8
9500
PSH682□3DB6B2□□□□□
0.0068
26.5
17.5
9.5
22.5
0.8
9500
PSH822□3DB6B2□□□□□
0.0082
26.5
18.0
10.0
22.5
0.8
9500
PSH103□3DB6B2□□□□□
0.010
26.5
18.5
11.0
22.5
0.8
9500
PSH123□3DB6B2□□□□□
0.012
26.5
20.0
12.5
22.5
0.8
9500
PSH153□3DB6B2□□□□□
0.015
26.5
20.5
13.0
22.5
0.8
9500
PSH183□3DB6B2□□□□□
0.018
26.5
21.5
13.5
22.5
0.8
9500

back to top

Film
