v. PHB. Double Sided Metallized Polypropylene Film Capacitor A.C. Application - Encapsulated

PHB are double sided metallized structure widely used in electronic lighting (i.e. car headlamp and ballast), pulse
applications with high A.C. voltage and HIGH current. Box material solvent resistant and flame retardant according to UL94 V0.

Drawing:

Outline Drawing
Appearance

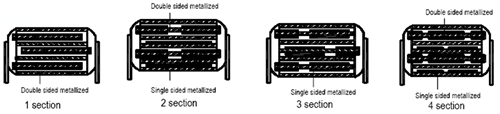

Construction



Features:

  • Low loss and small inherent temperature rise
  • Negative temperature coefficient of capacitance
  • Plastic case, epoxy resin filled.

Specification:

  • Operating temperature: -40℃~105℃
  • Capacitance range: 0.001µF~0.1µF
  • Capacitance tolerance: ±2%(G); ±3%(H); ±5%(J), ±10%(K), ±20%(M)
  • Rated voltage: 250VAC(630VDC); 300VAC(800VDC); 400VAC(1000VDC); 500VAC(1300VDC); 700VAC(1600VDC); 900VAC(2000VDC)
  • Dissipation factor: 0.1% max at 1KHZ,25℃
  • Insulation resistance:C≤0.33µF ≧50000 MΩ C>0.33µF ≧15000 MΩ

Performance:

Test Characteristics Test Methods JIS C 5102 Performance
Withstand voltage: Between terminals Apply 1.5 times of rated voltage for 60 sec.
charge discharge current must be 1A max		 Shall be no abnormality
Withstand voltage: Between terminals & enclosure Apply 2.0 times of rated voltage for 1 to 5 sec Shall be no abnormality
Insulation resistance: Between terminals Apply rated voltage ±15% for 60 sec. when rated voltage under 100V. Apply 100V ±15% when rated voltage from 100V to 500V at 20℃ ≤0.33µF ≧30,000MΩ
Insulation resistance: Between terminals & enclosure >0.33µF≧10,000MΩ•µF
Heat proof: Insulation resistance at 85℃ Testing temperature: 85±2℃ ≤0.33µF≧900MΩ at 85℃
>0.33µF≧300MΩ•µF at 85℃
Heat proof: Rate of variation of capacitance at 85℃ Within +5% -2% of the value before test
Humidity test: Appearance Temperature: 40±2 ; Humidity: 90-95% RH
Testing time: 500 +24 -0 Hrs. Apply voltage: rated voltage. After testing, leave it for about 16 Hrs. at standard condition Withstand voltage is 130% rated voltage, 60 sec.		 Shall be no abnormality
Humidity test: Withstand voltage Shall be no abnormality
Humidity test: Insulation resistance ≤0.33µF≧2700MΩ ;
>0.33µF≧900Ω•µF
Humidity test: Dissipation factor 0.011 (1.1%) Max.
Humidity test: Rate of variation capacitance Within ±10% of the value before test
Reference Standard GB/T 14579 (IEC 60384-17; IEC 60384-16) / JIS C 5102

Dimensions:

250VAC (1 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PHB103□2JA3A0□□□□□
0.010
13.0
9.0
4.0
10.0
0.6
1500
PHB123□2JA3A0□□□□□
0.012
13.0
9.0
4.0
10.0
0.6
1500
PHB153□2JA3A0□□□□□
0.015
13.0
11.0
5.0
10.0
0.6
1500
PHB183□2JA3A0□□□□□
0.018
13.0
12.0
6.0
10.0
0.6
1500
PHB223□2JA3A0□□□□□
0.022
13.0
12.0
6.0
10.0
0.6
1500
PHB273□2JA8A5□□□□□
0.027
18.0
12.0
6.0
15.0
0.8
900
PHB333□2JA8A5□□□□□
0.033
18.0
12.0
6.0
15.0
0.8
900
PHB393□2JA8A5□□□□□
0.039
18.0
12.0
6.0
15.0
0.8
900
PHB473□2JA8A5□□□□□
0.047
18.0
13.5
7.5
15.0
0.8
900
PHB563□2JA8A5□□□□□
0.056
18.0
13.5
7.5
15.0
0.8
900
PHB683□2JA8A5□□□□□
0.068
18.0
14.5
8.5
15.0
0.8
900
PHB823□2JA8A5□□□□□
0.082
18.0
16.0
10.0
15.0
0.8
900
PHB104□2JA8A5□□□□□
0.10
18.0
16.0
10.0
15.0
0.8
900

300VAC (2 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PHB103□2KA8A5□□□□□
0.010
18.0
11.0
5.0
15.0
0.6
2500
PHB123□2KA8A5□□□□□
0.012
18.0
11.0
5.0
15.0
0.6
2500
PHB153□2KA8A5□□□□□
0.015
18.0
11.0
5.0
15.0
0.6
2500
PHB183□2KA8A5□□□□□
0.018
18.0
11.0
5.0
15.0
0.6
2500
PHB223□2KA8A5□□□□□
0.022
18.0
12.0
6.0
15.0
0.6
2500
PHB273□2KA8A5□□□□□
0.027
18.0
12.0
6.0
15.0
0.8
2500
PHB333□2KA8A5□□□□□
0.033
18.0
13.5
7.5
15.0
0.8
2500
PHB393□2KA8A5□□□□□
0.039
18.0
13.5
7.5
15.0
0.8
2500
PHB473□2KA8A5□□□□□
0.047
18.0
14.5
8.5
15.0
0.8
2500
PHB563□2KA8A5□□□□□
0.056
18.0
16.0
10.0
15.0
0.8
2500
PHB683□2KA8A5□□□□□
0.068
18.0
16.0
10.0
15.0
0.8
2500
PHB563□2KB6B2□□□□□
0.056
26.5
15.0
6.0
22.5
0.8
1500
PHB683□2KB6B2□□□□□
0.068
26.5
16.0
7.0
22.5
0.8
1500
PHB823□2KB6B2□□□□□
0.082
26.5
17.0
8.5
22.5
0.8
1500
PHB104□2KB6B2□□□□□
0.10
26.5
17.0
8.5
22.5
0.8
1500

400VAC (2 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PHB562□3AA8A5□□□□□
0.0056
18.0
11.0
5.0
15.0
0.6
3300
PHB682□3AA8A5□□□□□
0.0068
18.0
11.0
5.0
15.0
0.6
3300
PHB822□3AA8A5□□□□□
0.0082
18.0
11.0
5.0
15.0
0.6
3300
PHB103□3AA8A5□□□□□
0.010
18.0
12.0
6.0
15.0
0.8
3300
PHB123□3AA8A5□□□□□
0.012
18.0
12.0
6.0
15.0
0.8
3300
PHB153□3AA8A5□□□□□
0.015
18.0
13.5
7.5
15.0
0.8
3300
PHB183□3AA8A5□□□□□
0.018
18.0
13.5
7.5
15.0
0.8
3300
PHB223□3AA8A5□□□□□
0.022
18.0
14.5
8.5
15.0
0.8
3300
PHB273□3AA8A5□□□□□
0.027
18.0
16.0
10.0
15.0
0.8
3300
PHB333□3AA8A5□□□□□
0.033
18.0
16.0
10.0
15.0
0.8
3300
PHB273□3AB6B2□□□□□
0.027
26.5
15.0
6.0
22.5
0.8
2100
PHB333□3AB6B2□□□□□
0.033
26.5
16.0
7.0
22.5
0.8
2100
PHB393□3AB6B2□□□□□
0.039
26.5
16.0
7.0
22.5
0.8
2100
PHB473□3AB6B2□□□□□
0.047
26.5
17.0
8.5
22.5
0.8
2100
PHB563□3AB6B2□□□□□
0.056
26.5
17.0
8.5
22.5
0.8
2100
PHB683□3AB6B2□□□□□
0.068
26.5
18.5
10.0
22.5
0.8
2100
PHB823□3AB6B2□□□□□
0.082
26.5
18.5
10.0
22.5
0.8
2100
PHB104□3AB6B2□□□□□
0.10
26.5
20.0
11.0
22.5
0.8
2100

500VAC (2 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PHB102□3BA8A5□□□□□
0.0010
18.0
11.0
5.0
15.0
0.6
4500
PHB122□3BA8A5□□□□□
0.0012
18.0
11.0
5.0
15.0
0.6
4500
PHB152□3BA8A5□□□□□
0.0015
18.0
11.0
5.0
15.0
0.6
4500
PHB182□3BA8A5□□□□□
0.0018
18.0
11.0
5.0
15.0
0.8
4500
PHB222□3BA8A5□□□□□
0.0022
18.0
11.0
5.0
15.0
0.8
4500
PHB272□3BA8A5□□□□□
0.0027
18.0
11.0
5.0
15.0
0.8
4500
PHB332□3BA8A5□□□□□
0.0033
18.0
11.0
5.0
15.0
0.8
4500
PHB392□3BA8A5□□□□□
0.0039
18.0
11.0
5.0
15.0
0.8
4500
PHB472□3BA8A5□□□□□
0.0047
18.0
11.0
5.0
15.0
0.8
4500
PHB562□3BA8A5□□□□□
0.0056
18.0
11.0
5.0
15.0
0.8
4500
PHB682□3BA8A5□□□□□
0.0068
18.0
12.0
6.0
15.0
0.8
4500
PHB822□3BA8A5□□□□□
0.0082
18.0
12.0
6.0
15.0
0.8
4500
PHB103□3BA8A5□□□□□
0.010
18.0
13.5
7.5
15.0
0.8
4500
PHB123□3BA8A5□□□□□
0.012
18.0
13.5
7.5
15.0
0.8
4500
PHB153□3BA8A5□□□□□
0.015
18.0
14.5
8.5
15.0
0.8
4500
PHB183□3BA8A5□□□□□
0.018
18.0
16.0
10.0
15.0
0.8
4500
PHB223□3BA8A5□□□□□
0.022
18.0
16.0
10.0
15.0
0.8
4500
PHB183□3BB6B2□□□□□
0.018
26.5
15.0
6.0
22.5
0.8
2500
PHB223□3BB6B2□□□□□
0.022
26.5
16.0
7.0
22.5
0.8
2500
PHB273□3BB6B2□□□□□
0.027
26.5
16.0
7.0
22.5
0.8
2500
PHB333□3BB6B2□□□□□
0.033
26.5
17.0
8.5
22.5
0.8
2500
PHB393□3BB6B2□□□□□
0.039
26.5
18.5
10.0
22.5
0.8
2500
PHB473□3BB6B2□□□□□
0.047
26.5
18.5
10.0
22.5
0.8
2500
PHB563□3BB6B2□□□□□
0.056
26.5
20.0
11.0
22.5
0.8
2500
PHB683□3BC2B7□□□□□
0.068
32.0
20.0
11.0
27.5
0.8
1100
PHB823□3BC2B7□□□□□
0.082
32.0
20.0
11.0
27.5
0.8
1100
PHB104□3BC2B7□□□□□
0.10
32.0
22.0
13.0
27.5
0.8
1100

700VAC (3 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PHB102□3CA8A5□□□□□
0.0010
18.0
11.0
5.0
15.0
0.8
9500
PHB122□3CA8A5□□□□□
0.0012
18.0
11.0
5.0
15.0
0.8
9500
PHB152□3CA8A5□□□□□
0.0015
18.0
11.0
5.0
15.0
0.8
9500
PHB182□3CA8A5□□□□□
0.0018
18.0
11.0
5.0
15.0
0.8
9500
PHB222□3CA8A5□□□□□
0.0022
18.0
11.0
5.0
15.0
0.8
9500
PHB272□3CA8A5□□□□□
0.0027
18.0
12.0
6.0
15.0
0.8
9500
PHB332□3CA8A5□□□□□
0.0033
18.0
12.0
6.0
15.0
0.8
9500
PHB392□3CA8A5□□□□□
0.0039
18.0
13.5
7.5
15.0
0.8
9500
PHB472□3CA8A5□□□□□
0.0047
18.0
13.5
7.5
15.0
0.8
9500
PHB562□3CA8A5□□□□□
0.0056
18.0
14.5
8.5
15.0
0.8
9500
PHB682□3CA8A5□□□□□
0.0068
18.0
14.5
8.5
15.0
0.8
9500
PHB822□3CA8A5□□□□□
0.0082
18.0
16.0
10.0
15.0
0.8
9500
PHB822□3CB6B2□□□□□
0.0082
26.5
15.0
6.0
22.5
0.8
4500
PHB103□3CB6B2□□□□□
0.010
26.5
15.0
6.0
22.5
0.8
4500
PHB123□3CB6B2□□□□□
0.012
26.5
16.0
7.0
22.5
0.8
4500
PHB153□3CB6B2□□□□□
0.015
26.5
17.0
8.5
22.5
0.8
4500
PHB183□3CB6B2□□□□□
0.018
26.5
18.5
10.0
22.5
0.8
4500
PHB223□3CB6B2□□□□□
0.022
26.5
18.5
10.0
22.5
0.8
4500
PHB273□3CB6B2□□□□□
0.027
26.5
20.0
11.0
22.5
0.8
4500

900VAC (4 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PHB102□3DB6B2□□□□□
0.0010
26.5
15.0
6.0
22.5
0.8
9500
PHB122□3DB6B2□□□□□
0.0012
26.5
15.0
6.0
22.5
0.8
9500
PHB152□3DB6B2□□□□□
0.0015
26.5
15.0
6.0
22.5
0.8
9500
PHB182□3DB6B2□□□□□
0.0018
26.5
15.0
6.0
22.5
0.8
9500
PHB222□3DB6B2□□□□□
0.0022
26.5
15.0
6.0
22.5
0.8
9500
PHB272□3DB6B2□□□□□
0.0027
26.5
15.0
6.0
22.5
0.8
9500
PHB332□3DB6B2□□□□□
0.0033
26.5
15.0
6.0
22.5
0.8
9500
PHB392□3DB6B2□□□□□
0.0039
26.5
15.0
6.0
22.5
0.8
9500
PHB472□3DB6B2□□□□□
0.0047
26.5
15.0
6.0
22.5
0.8
9500
PHB562□3DB6B2□□□□□
0.0056
26.5
15.0
6.0
22.5
0.8
9500
PHB682□3DB6B2□□□□□
0.0068
26.5
16.0
7.0
22.5
0.8
9500
PHB822□3DB6B2□□□□□
0.008
26.5
16.0
7.0
22.5
0.8
9500
PHB103□3DB6B2□□□□□
0.010
26.5
17.0
8.5
22.5
0.8
9500
PHB123□3DB6B2□□□□□
0.012
26.5
18.5
10.0
22.5
0.8
9500
PHB153□3DB6B2□□□□□
0.015
26.5
18.5
10.0
22.5
0.8
9500
PHB183□3DB6B2□□□□□
0.018
26.5
20.0
11.0
22.5
0.8
9500

back to top

Film
