iii. PSB. Metallized Polypropylene Film Capacitor A.C. Application - Encapsulated

PSB are constructed with special series metallized polypropylene film dielectric, tinned copper wire leads and
plastic case, epoxy resin filled, in non-inductive type. Electronic lighting(i.e. car headlamp and ballast), pulse
applications with high A.C. voltage and medium current.

Drawing:

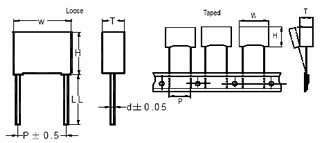

Outline Drawing
Appearance

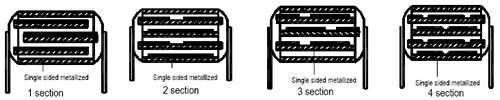

Construction



Features:

  • Self-healing property
  • High corona starting voltage (csv)
  • Low DF and inherent temperature rise
  • High current rating and high dv/dt
  • High reliability and excellent long term stability

Specification:

  • Operating temperature: -40℃~85℃
  • Capacitance range: 0.001µF~0.12µF
  • Capacitance tolerance: ±5%(J), ±10%(K), ±20%(M)
  • Rated voltage: 250VAC(630VDC), 400VAC(1000VDC), 500VAC(1250VDC), 700VAC(1600VDC), 900VAC(2000VDC)
  • Dissipation factor: 0.1% max at 1KHZ, 25℃
  • Insulation resistance: >50000 MΩ (at 25℃) (measured at 100Vdc 1minute)

Performance:

Test Characteristics Test Methods JIS C 5102 Performance
Withstand voltage: Between terminals Apply 1.5 times of rated voltage for 60 sec.
charge discharge current must be 1A max		 Shall be no abnormality
Withstand voltage: Between terminals & enclosure Apply 2.0 times of rated voltage for 1 to 5 sec Shall be no abnormality
Insulation resistance: Between terminals Apply rated voltage ±15% for 60 sec. when rated voltage under 100V. Apply 100V ±15% when rated voltage from 100V to 500V at 20℃ ≧50,000MΩ
Insulation resistance: Between terminals & enclosure
Heat proof: Insulation resistance at 85℃ Testing temperature: 85±2℃ ≧50000MΩ
Heat proof: Rate of variation of capacitance at 85℃ Within +5% -2% of the value before test
Humidity test: Appearance Temperature: 40±2 ; Humidity: 90-95% RH
Testing time: 500 +24 -0 Hrs. Apply voltage: rated voltage. After testing, leave it for about 16 Hrs. at standard condition Withstand voltage is 130% rated voltage, 60 sec.		 Shall be no abnormality
Humidity test: Withstand voltage Shall be no abnormality
Humidity test: Insulation resistance ≧15000MΩ
Humidity test: Dissipation factor 0.011 (1.1%) Max.
Humidity test: Rate of variation capacitance Within ±10% of the value before test
Reference Standard GB/T 14579 (IEC 60384-17; IEC 60384-16) / JIS C 5102

Dimensions:

250VAC (1 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PSB153□2JA8A5□□□□□
0.015
18.0
11.0
5.0
15.0
0.8
250
PSB183□2JA8A5□□□□□
0.018
18.0
11.0
5.0
15.0
0.8
250
PSB223□2JA8A5□□□□□
0.022
18.0
11.0
5.0
15.0
0.8
250
PSB273□2J28A5□□□□□
0.027
18.0
11.0
5.0
15.0
0.8
250
PSB333□2JA8A5□□□□□
0.033
18.0
11.0
5.0
15.0
0.8
250
PSB393□2JA8A5□□□□□
0.039
18.0
12.0
6.0
15.0
0.8
250
PSB473□2JA8A5□□□□□
0.047
18.0
12.0
6.0
15.0
0.8
250
PSB563□2JA8A5□□□□□
0.056
18.0
13.5
7.5
15.0
0.8
250
PSB683□2JA8A5□□□□□
0.068
18.0
13.5
7.5
15.0
0.8
250
PSB823□2JA8A5□□□□□
0.082
18.0
14.5
8.5
15.0
0.8
250
PSB104□2JA8A5□□□□□
0.10
18.0
14.5
8.5
15.0
0.8
250
PSB124□2JA8A5□□□□□
0.12
18.0
16.0
10.0
15.0
0.8
250

400VAC (2 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PSB682□3AA8A5□□□□□
0.0068
18.0
11.0
5.0
15.0
0.8
1000
PSB822□3AA8A5□□□□□
0.0082
18.0
11.0
5.0
15.0
0.8
1000
PSB103□3AA8A5□□□□□
0.010
18.0
11.0
5.0
15.0
0.8
1000
PSB123□3AA8A5□□□□□
0.012
18.0
12.0
6.0
15.0
0.8
1000
PSB153□3AA8A5□□□□□
0.015
18.0
12.0
6.0
15.0
0.8
1000
PSB183□3AA8A5□□□□□
0.018
18.0
13.5
7.5
15.0
0.8
1000
PSB223□3AA8A5□□□□□
0.022
18.0
13.5
7.5
15.0
0.8
1000
PSB273□3AA8A5□□□□□
0.027
18.0
14.5
8.5
15.0
0.8
1000
PSB333□3AA8A5□□□□□
0.033
18.0
14.5
8.5
15.0
0.8
1000
PSB393□3AA8A5□□□□□
0.039
18.0
16.0
10.0
15.0
0.8
1000
PSB473□3AA8A5□□□□□
0.047
18.0
16.0
10.0
15.0
0.8
1000
PSB393□3AB6B2□□□□□
0.039
26.5
15.0
6.0
22.5
0.8
500
PSB473□3AB6B2□□□□□
0.047
26.5
16.0
7.0
22.5
0.8
500
PSB563□3AB6B2□□□□□
0.056
26.5
16.0
7.0
22.5
0.8
500
PSB683□3AB6B2□□□□□
0.068
26.5
17.0
8.5
22.5
0.8
500
PSB823□3AB6B2□□□□□
0.082
26.5
18.5
10.0
22.5
0.8
500
PSB104□3AB6B2□□□□□
0.10
26.5
18.5
10.0
22.5
0.8
500

500VAC (2 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PSB152□3BA8A5□□□□□
0.0015
18.0
11.0
5.0
15.0
0.8
1300
PSB182□3BA8A5□□□□□
0.0018
18.0
11.0
5.0
15.0
0.8
1300
PSB222□3BA8A5□□□□□
0.0022
18.0
11.0
5.0
15.0
0.8
1300
PSB272□3BA8A5□□□□□
0.0027
18.0
11.0
5.0
15.0
0.8
1300
PSB332□3BA8A5□□□□□
0.0033
18.0
11.0
5.0
15.0
0.8
1300
PSB392□3BA8A5□□□□□
0.0039
18.0
11.0
5.0
15.0
0.8
1300
PSB472□3BA8A5□□□□□
0.0047
18.0
11.0
5.0
15.0
0.8
1300
PSB562□3BA8A5□□□□□
0.0056
18.0
11.0
5.0
15.0
0.8
1300
PSB682□3BA8A5□□□□□
0.0068
18.0
12.0
6.0
15.0
0.8
1300
PSB822□3BA8A5□□□□□
0.0082
18.0
12.0
6.0
15.0
0.8
1300
PSB103□3BA8A5□□□□□
0.010
18.0
12.0
6.0
15.0
0.8
1300
PSB123□3BA8A5□□□□□
0.012
18.0
13.5
7.5
15.0
0.8
1300
PSB153□3BA8A5□□□□□
0.015
18.0
13.5
7.5
15.0
0.8
1300
PSB188□3BA8A5□□□□□
0.018
18.0
14.5
8.5
15.0
0.8
1300
PSB223□3BA8A5□□□□□
0.022
18.0
16.0
10.0
15.0
0.8
1300
PSB273□3BA8A5□□□□□
0.027
18.0
16.0
10.0
15.0
0.8
1300
PSB183□3BB6B2□□□□□
0.018
26.5
15.0
6.0
22.5
0.8
700
PSB223□3BB6B2□□□□□
0.022
26.5
15.0
6.0
22.5
0.8
700
PSB273□3BB6B2□□□□□
0.027
26.5
16.0
7.0
22.5
0.8
700
PSB333□3BB6B2□□□□□
0.033
26.5
16.0
7.0
22.5
0.8
700
PSB393□3BB6B2□□□□□
0.039
26.5
17.0
8.5
22.5
0.8
700
PSB473□3BB6B2□□□□□
0.047
26.5
18.5
10.0
22.5
0.8
700
PSB563□3BB6B2□□□□□
0.056
26.5
18.5
10.0
22.5
0.8
700
PSB683□3BB6B2□□□□□
0.068
26.5
20.0
11.0
22.5
0.8
700
PSB823□3BC2B7□□□□□
0.082
32.0
20.0
11.0
27.5
0.8
500
PSB104□3BC2B7□□□□□
0.10
32.0
20.0
11.0
27.5
0.8
500

700VAC (3 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PSB102□3CA8A5□□□□□
0.0010
18.0
11.0
5.0
15.0
0.8
3000
PSB122□3CA8A5□□□□□
0.0012
18.0
11.0
5.0
15.0
0.8
3000
PSB152□3CA8A5□□□□□
0.0015
18.0
11.0
5.0
15.0
0.8
3000
PSB182□3CA8A5□□□□□
0.0018
18.0
11.0
5.0
15.0
0.8
3000
PSB222□3CA8A5□□□□□
0.0022
18.0
11.0
5.0
15.0
0.8
3000
PSB272□3CA8A5□□□□□
0.0027
18.0
11.0
5.0
15.0
0.8
3000
PSB332□3CA8A5□□□□□
0.0033
18.0
11.0
5.0
15.0
0.8
3000
PSB392□3CA8A5□□□□□
0.0039
18.0
12.0
6.0
15.0
0.8
3000
PSB472□3CA8A5□□□□□
0.0047
18.0
12.0
6.0
15.0
0.8
3000
PSB562□3CA8A5□□□□□
0.0056
18.0
12.0
6.0
15.0
0.8
3000
PSB682□3CA8A5□□□□□
0.0068
18.0
13.5
7.5
15.0
0.8
3000
PSB822□3CA8A5□□□□□
0.0082
18.0
13.5
7.5
15.0
0.8
3000
PSB103□3CA8A5□□□□□
0.010
18.0
14.5
8.5
15.0
0.8
3000
PSB123□3CA8A5□□□□□
0.012
18.0
16.0
10.0
15.0
0.8
3000
PSB153□3CA8A5□□□□□
0.015
18.0
16.0
10.0
15.0
0.8
3000
PSB822□3CB6B2□□□□□
0.0082
26.5
15.0
6.0
22.5
0.8
1300
PSB103□3CB6B2□□□□□
0.010
26.5
15.0
6.0
22.5
0.8
1300
PSB123□3CB6B2□□□□□
0.012
26.5
15.0
6.0
22.5
0.8
1300
PSB153□3CB6B2□□□□□
0.015
26.5
15.0
6.0
22.5
0.8
1300
PSB183□3CB6B2□□□□□
0.018
26.5
16.0
7.0
22.5
0.8
1300
PSB223□3CB6B2□□□□□
0.022
26.5
17.0
8.5
22.5
0.8
1300
PSB273□3CB6B2□□□□□
0.027
26.5
17.0
8.5
22.5
0.8
1300
PSB333□3CB6B2□□□□□
0.033
26.5
18.5
10.0
22.5
0.8
1300
PSB393□3CB6B2□□□□□
0.039
26.5
18.5
10.0
22.5
0.8
1300
PSB473□3CB6B2□□□□□
0.047
26.5
20.0
11.0
22.5
0.8
1300

900VAC (4 section)
Part No.
Cap(µF)
Dimensions(mm)
dv/dt V/µs
W
H
T
P
dФ
PSB102□3DB6B2□□□□□
0.0010
26.5
15.0
6.0
22.5
0.8
2500
PSB122□3DB6B2□□□□□
0.0012
26.5
15.0
6.0
22.5
0.8
2500
PSB152□3DB6B2□□□□□
0.0015
26.5
15.0
6.0
22.5
0.8
2500
PSB182□3DB6B2□□□□□
0.0018
26.5
15.0
6.0
22.5
0.8
2500
PSB222□3DB6B2□□□□□
0.0022
26.5
15.0
6.0
22.5
0.8
2500
PSB272□3DB6B2□□□□□
0.0027
26.5
15.0
6.0
22.5
0.8
2500
PSB332□3DB6B2□□□□□
0.0033
26.5
15.0
6.0
22.5
0.8
2500
PSB392□3DB6B2□□□□□
0.0039
26.5
15.0
6.0
22.5
0.8
2500
PSB472□3DB6B2□□□□□
0.0047
26.5
15.0
6.0
22.5
0.8
2500
PSB562□3DB6B2□□□□□
0.0056
26.5
15.0
6.0
22.5
0.8
2500
PSB682□3DB6B2□□□□□
0.0068
26.5
15.0
6.0
22.5
0.8
2500
PSB822□3DB6B2□□□□□
0.0082
26.5
16.0
7.0
22.5
0.8
2500
PSB103□3DB6B2□□□□□
0.010
26.5
16.0
7.0
22.5
0.8
2500
PSB123□3DB6B2□□□□□
0.012
26.5
17.0
8.5
22.5
0.8
2500
PSB153□3DB6B2□□□□□
0.015
26.5
18.5
10.0
22.5
0.8
2500
PSB183□3DB6B2□□□□□
0.018
26.5
18.5
10.0
22.5
0.8
2500
PSB223□3DB6B2□□□□□
0.022
26.5
20.0
11.0
22.5
0.8
2500
