iii. CPT. Motor start CPT type

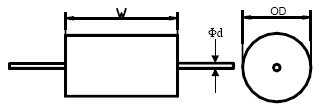

Outline Drawing
|
Construction
|
Appearance
|
CPT is self-healing cylindrical construction capacitor, which is wounded with metalized flame polypropylene film dielectric wrapped with polyester tape and epoxy resin end seal.
Features:
- For motor application
- Wrapped with polyester tape
- Epoxy resin end seal
- Cylindrical construction capacitor
Specification:
- Operating temperature: -40℃~+85℃ (metalized polypropylene film)
- Capacitance range: 0.5μF~20μF
- Capacitance tolerance: ±5% (J); ±10% (K); ±150% (U); ±1000% (X); ±20% (M)
- Rated voltage: 100VAC ~ 500VAC
- Dissipation factor: 0.1% max at 1KHz 25°C (metalized polypropylene film)
- Insulation Resistance:
Between terminals C>1.0μF 1000MΩXμF/100VDC 60s
C≦1.0μF 1000MΩ/100VDC 60s
Terminals to case ≧2000MΩXμF/100VDC - Withstanding standard:
Between terminals: Rated voltage x 1.5VAC 10sec for UL
Terminals to case: Rated voltage x 2+1000VAC (min 2000VAC) 60sec
Performance:
| Test Characteristics | Test Methods JIS C 4908 | Performance |
| Withstand voltage: Between terminals | Apply 1.5 times of rated voltage for 10 sec. charge discharge current must be 1A max | Shall be no abnormality (Promise intermittent self-healing) |
| Withstand voltage: Between terminals & enclosure | Apply rated voltagex2+1000VAC (2000VAC min) for 60s | Shall be no abnormality |
| Insulation resistance: Between terminals | Apply voltage 100VDC for 60s | ≤1.0μF 1000MΩ; >1.0μF 1000MΩ*μF |
| Insulation resistance: Between terminals & enclosure | Apply voltage 100VDC for 60s | 2000MΩ |
| Humidity test: Appearance | Temperature: 40±3℃; Humidity: 90-95% RH Testing time: 500±12 Hrs. After testing, leave it for 1Hrs or more but within 2Hrs at standard condition Withstand voltage is 150% rated voltage, 10 sec. |
Shall be no abnormality |
| Humidity test: Withstand voltage | Shall be no abnormality | |
| Humidity test: Insulation resistance | ≥1000MΩ | |
| Humidity test: Dissipation factor | Increased value shall be 0.5x10-3 max | |
| Humidity test: Rate of variation capacitance | Within ±5% of the value before test | |
| Endurance test: Appearance | Temperature: Maximum permissible temperature±3℃ Test voltage : Rate voltage x 1.25 Test time: (+24; -0) 600Hrs |
No remarkable abnormality |
| Endurance test: Capacitance | Rate of variation to initial value shall be within ±5% | |
| Endurance test: Dielectric dissipation factor at high temperature | Rate of increase to initial value shall be max 1.2. However, for capacitor using plastic film only as dielectric, increased value shall be 0.5x10-3 max | |
| Reference Standard | UL-810; EN60252 | |
Dimensions:
| 100VAC ~ 250VAC | ||||||
| Part No. | Cap. µF |
Dimensions (mm) |
UL |
CUL |
VDE |
|
OD |
W |
|||||
| CPT0504□6B-9□□□□□□ | 0.5 |
9.5 |
32.0 |
|||
| CPT0105□6BA2□□□□□□ | 1.0 |
12.5 |
32.0 |
|||
| CPT0155□6BA4□□□□□□ | 1.5 |
14.5 |
32.0 |
|||
| CPT0205□6BA6□□□□□□ | 2.0 |
16.0 |
32.0 |
|||
| CPT0305□6BA7□□□□□□ | 3.0 |
17.5 |
37.0 |
|||
| CPT0405□6BB0□□□□□□ | 4.0 |
20.0 |
37.0 |
|||
| CPT0505□6BB2□□□□□□ | 5.0 |
22.0 |
37.0 |
|||
| CPT0605□6BB3□□□□□□ | 6.0 |
23.8 |
37.0 |
|||
| CPT0705□6BB2□□□□□□ | 7.0 |
22.0 |
47.0 |
|||
| CPT0805□6BB3□□□□□□ | 8.0 |
23.5 |
47.0 |
|||
| CPT0905□6BB4□□□□□□ | 9.0 |
24.5 |
47.0 |
|||
| CPT0106□6BB6□□□□□□ | 10.0 |
26.0 |
47.0 |
|||
| CPT0126□6BB8□□□□□□ | 12.0 |
28.0 |
47.0 |
|||
| CPT0156□6BC0□□□□□□ | 15.0 |
30.5 |
47.0 |
|||
| CPT0206□6BC5□□□□□□ | 20.0 |
35.0 |
47.0 |
|||
| 250VAC ~ 275VAC | ||||||
| Part No. | Cap. µF |
Dimensions (mm) |
UL |
CUL |
VDE |
|
OD |
W |
|||||
| CPT0504□8BA1□□□□□□ | 0.5 |
11.5 |
32.0 |
|||
| CPT0105□8BA5□□□□□□ | 1.0 |
15.0 |
32.0 |
|||
| CPT0155□8BA7□□□□□□ | 1.5 |
17.5 |
32.0 |
|||
| CPT0205□8BA8□□□□□□ | 2.0 |
18.0 |
37.0 |
|||
| CPT0305□8BB0□□□□□□ | 3.0 |
20.5 |
37.0 |
|||
| CPT0405□8BB3□□□□□□ | 4.0 |
23.5 |
37.0 |
|||
| CPT0505□8BB5□□□□□□ | 5.0 |
25.5 |
37.0 |
|||
| CPT0605□8BB4□□□□□□ | 6.0 |
24.0 |
47.0 |
|||
| CPT0705□8BB5□□□□□□ | 7.0 |
25.5 |
47.0 |
|||
| CPT0805□8BB7□□□□□□ | 8.0 |
27.5 |
47.0 |
|||
| CPT0905□8BB9□□□□□□ | 9.0 |
29.0 |
47.0 |
|||
| CPT0106□8BC0□□□□□□ | 10.0 |
30.0 |
47.0 |
|||
| CPT0126□8BC3□□□□□□ | 12.0 |
33.0 |
47.0 |
|||
| CPT0156□8BC6□□□□□□ | 15.0 |
36.0 |
47.0 |
|||
| 300VAC ~ 350VAC | ||||||
| Part No. | Cap. µF |
Dimensions (mm) |
UL |
CUL |
VDE |
|
OD |
W |
|||||
| CPT0504□8BA1□□□□□□ | 0.5 |
13.0 |
32.0 |
|||
| CPT0105□8BA5□□□□□□ | 1.0 |
17.0 |
32.0 |
|||
| CPT0155□8BA7□□□□□□ | 1.5 |
18.0 |
37.0 |
|||
| CPT0205□8BA8□□□□□□ | 2.0 |
20.0 |
37.0 |
|||
| CPT0305□8BB0□□□□□□ | 3.0 |
23.5 |
37.0 |
|||
| CPT0405□8BB3□□□□□□ | 4.0 |
26.5 |
37.0 |
|||
| CPT0505□8BB5□□□□□□ | 5.0 |
25.5 |
47.0 |
|||
| CPT0605□8BB4□□□□□□ | 6.0 |
27.5 |
47.0 |
|||
| CPT0705□8BB5□□□□□□ | 7.0 |
29.5 |
47.0 |
|||
| CPT0805□8BB7□□□□□□ | 8.0 |
31.5 |
47.0 |
|||
| CPT0106□8BC0□□□□□□ | 10.0 |
34.5 |
47.0 |
|||
| CPT0126□8BC3□□□□□□ | 12.0 |
37.5 |
47.0 |
|||
| 300VAC ~ 400VAC | ||||||
| Part No. | Cap. µF |
Dimensions (mm) |
UL |
CUL |
VDE |
|
OD |
W |
|||||
| CPT0504□8BA1□□□□□□ | 0.5 |
14.5 |
32.0 |
|||
| CPT0804□8BA1□□□□□□ | 0.8 |
17.0 |
32.0 |
|||
| CPT0105□8BA5□□□□□□ | 1.0 |
17.0 |
37.0 |
|||
| CPT0125□8BA5□□□□□□ | 1.2 |
18.5 |
37.0 |
|||
| CPT0155□8BA7□□□□□□ | 1.5 |
20.0 |
37.0 |
|||
| CPT0205□8BA8□□□□□□ | 2.0 |
22.5 |
37.0 |
|||
| CPT0255□8BA8□□□□□□ | 2.5 |
25.0 |
37.0 |
|||
| CPT0305□8BB0□□□□□□ | 3.0 |
26.0 |
37.0 |
|||
| CPT0405□8BB3□□□□□□ | 4.0 |
26.0 |
47.0 |
|||
| CPT0505□8BB5□□□□□□ | 5.0 |
28.5 |
47.0 |
|||
| CPT0605□8BB4□□□□□□ | 6.0 |
31.0 |
47.0 |
|||
| CPT0705□8BB5□□□□□□ | 7.0 |
33.5 |
47.0 |
|||
| CPT0805□8BB7□□□□□□ | 8.0 |
35.5 |
47.0 |
|||
| 400VAC ~ 450VAC | ||||||
| Part No. | Cap. µF |
Dimensions (mm) |
UL |
CUL |
VDE |
|
OD |
W |
|||||
| CPT0504□8BA1□□□□□□ | 0.5 |
15.5 |
32.0 |
|||
| CPT0804□8BA1□□□□□□ | 0.8 |
18.5 |
32.0 |
|||
| CPT0105□8BA5□□□□□□ | 1.0 |
18.5 |
37.0 |
|||
| CPT0125□8BA5□□□□□□ | 1.2 |
20.0 |
37.0 |
|||
| CPT0155□8BA7□□□□□□ | 1.5 |
22.0 |
37.0 |
|||
| CPT0205□8BA8□□□□□□ | 2.0 |
24.5 |
37.0 |
|||
| CPT0255□8BA8□□□□□□ | 2.5 |
27.0 |
37.0 |
|||
| CPT0305□8BB0□□□□□□ | 3.0 |
25.5 |
47.0 |
|||
| CPT0405□8BB3□□□□□□ | 4.0 |
29.0 |
47.0 |
|||
| CPT0505□8BB5□□□□□□ | 5.0 |
32.0 |
47.0 |
|||
| CPT0605□8BB4□□□□□□ | 6.0 |
34.5 |
47.0 |
|||
| CPT0705□8BB5□□□□□□ | 7.0 |
37.0 |
47.0 |
|||
| 450VAC ~ 500VAC | ||||||
| Part No. | Cap. µF |
Dimensions (mm) |
UL |
CUL |
VDE |
|
OD |
W |
|||||
| CPT0504□8DA4□□□□□□ | 0.5 |
14.7 |
32.0 |
|||
| CPT0804□8DA7□□□□□□ | 0.8 |
17.0 |
37.0 |
|||
| CPT0105□8DA8□□□□□□ | 1.0 |
18.5 |
37.0 |
|||
| CPT0125□8DB0□□□□□□ | 1.2 |
20.5 |
37.0 |
|||
| CPT0155□8DB2□□□□□□ | 1.5 |
22.0 |
37.0 |
|||
| CPT0185□8DB4□□□□□□ | 1.8 |
24.0 |
37.0 |
|||
| CPT0205□8DB6□□□□□□ | 2.0 |
26.0 |
37.0 |
|||
| CPT0255□8DB3□□□□□□ | 2.5 |
23.5 |
47.0 |
|||
| CPT0305□8DB8□□□□□□ | 3.0 |
28.0 |
47.0 |
|||
| CPT0355□8DB8□□□□□□ | 3.5 |
28.0 |
47.0 |
|||
| CPT0405□8DC1□□□□□□ | 4.0 |
31.0 |
47.0 |
|||
| CPT0455□8DC3□□□□□□ | 4.5 |
33.5 |
47.0 |
|||
| CPT0505□8DC5□□□□□□ | 5.0 |
35.5 |
47.0 |
|||
| CPT0605□8DC8□□□□□□ | 6.0 |
38.0 |
47.0 |
|||
