i. CPA. Motor start CPA type

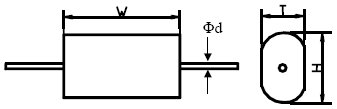

Outline Drawing
|
Construction
|
Appearance
|
CPA is self-healing flat capacitor, which is wounded with metalized polypropylene film dielectric, wrapped with flame polyester tape and epoxy resin end seal.
FEATURES:
- For motor application
- Wrapped with polyester tape
- Epoxy resin end seal
SPECIFICATION
- Operating temperature: -40℃ ~ +85℃ (metalized polypropylene film)
- Capacitance range: 0.5μF ~ 20μF
- Capacitance tolerance: ±5% (J); ±10% (K); ±150% (U); ±100% (X); ±20% (M)
- Rated voltage: 100VAC ~ 500VAC
- Dissipation factor: 0.1% max at 1KHz 25°C (Metalized polypropylene film)
- Insulation resistance:
Between terminals C>1.0μF 1000MΩXμF/100VDC 60s
C≦1.0μF 1000MΩ/100VDC 60s - Withstanding standard:
Between terminals: Rated voltage X 1.5VAC 10sec for UL
Terminals to case: Rated voltage X 2+1000VAC (min 2000VAC) 60sec
PERFORMANCE
| Test Characteristics | Test Methods JIS C 4908 | Performance |
| Withstand voltage: Between terminals | Apply 1.5 times of rated voltage for 10 sec. charge discharge current must be 1A max | Shall be no abnormality (Promise intermittent self-healing) |
| Withstand voltage: Between terminals & enclosure | Apply rated voltagex2+1000VAC (2000VAC min) for 60s | Shall be no abnormality |
| Insulation resistance: Between terminals | Apply voltage 100VDC for 60s | Shall be no abnormality |
| Insulation resistance: Between terminals & enclosure | Apply voltage 100VDC for 60s | Shall be no abnormality |
| Humidity test: Appearance | Temperature: 40±3℃; Humidity: 90-95% RH Testing time: 500±12 Hrs. After testing, leave it for 1Hrs or more but within 2Hrs at standard condition Withstand voltage is 150% rated voltage, 10 sec. |
Shall be no abnormality |
| Humidity test: Withstand voltage | Shall be no abnormality | |
| Humidity test: Insulation resistance | ≥1000MΩ | |
| Humidity test: Dissipation factor | Increased value shall be 0.5x10-3 max | |
| Humidity test: Rate of variation capacitance | Within ±5% of the value before test | |
| Endurance test: Appearance | Temperature: Maximum permissible temperature±3℃ Test voltage : Rate voltage x 1.25 Test time: (+24; -0) 600Hrs |
No remarkable abnormality |
| Endurance test: Capacitance | Rate of variation to initial value shall be within ±5% | |
| Endurance test: Dielectric dissipation factor at high temperature | Rate of increase to initial value shall be max 1.2. However, for capacitor using plastic film only as dielectric, increased value shall be max 0.5x10-3 | |
| Reference Standard | UL-810; EN60252 | |
DIMENSIONS:
100VAC ~ 250VAC |
|||||||
| Part No. | Cap. µF |
Dimensions (mm) | UL | CUL | VDE | ||
| W | T | H | |||||
| CPA0504□6BC2□□□□□□
|
0.5 |
32.0 |
6.0 |
15.5 |
|||
| CPA0105□6BC2 □□□□□□
|
1.0 |
32.0 |
8.0 |
17.5 |
|||
| CPA0155□6BC2 □□□□□□
|
1.5 |
32.0 |
10.0 |
19.5 |
|||
| CPA0205□6BC2 □□□□□□
|
2.0 |
32.0 |
11.5 |
20.5 |
|||
| CPA0305□6BC7 □□□□□□
|
3.0 |
37.0 |
12.5 |
22.0 |
|||
| CPA0405□6BC7 □□□□□□
|
4.0 |
37.0 |
15.0 |
25.5 |
|||
| CPA0505□6BC7 □□□□□□
|
5.0 |
37.0 |
17.0 |
26.5 |
|||
| CPA0605□6BC7 □□□□□□
|
6.0 |
37.0 |
19.0 |
28.5 |
|||
| CPA0705□6BD7 □□□□□□
|
7.0 |
47.0 |
17.0 |
25.5 |
|||
| CPA0805□6BD7 □□□□□□
|
8.0 |
47.0 |
18.5 |
28.0 |
|||
| CPA0905□6BD7 □□□□□□
|
9.0 |
47.0 |
19.5 |
29.0 |
|||
| CPA0106□6BD7 □□□□□□
|
10.0 |
47.0 |
20.5 |
32.0 |
|||
| CPA0126□6BD7 □□□□□□
|
12.0 |
47.0 |
22.5 |
32.0 |
|||
| CPA0156□6BD7 □□□□□□
|
15.0 |
47.0 |
25.3 |
34.5 |
|||
| CPA0206□6B72 □□□□□□
|
20.0 |
47.0 |
29.5 |
39.0 |
|||
| 250VAC ~ 300VAC | |||||||
| Part No. | Cap. µF |
Dimensions (mm) |
UL |
CUL |
VDE |
||
W |
T |
H |
|||||
| CPA0504□8BC2□□□□□□
|
0.5 |
32.0 |
7.0 |
16.5 |
|||
| CPA0105□8BC2□□□□□□
|
1.0 |
32.0 |
9.6 |
19.0 |
|||
| CPA0155□8BC2□□□□□□
|
1.5 |
32.0 |
12.0 |
21.5 |
|||
| CPA0205□8BC7□□□□□□
|
2.0 |
37.0 |
12.7 |
22.2 |
|||
| CPA0305□8BC7□□□□□□
|
3.0 |
37.0 |
15.0 |
24.5 |
|||
| CPA0405□8BC7□□□□□□
|
4.0 |
37.0 |
18.0 |
27.5 |
|||
| CPA0505□8BC7□□□□□□
|
5.0 |
37.0 |
20.5 |
30.0 |
|||
| CPA0605□8BD7□□□□□□
|
6.0 |
47.0 |
19.0 |
38.5 |
|||
| CPA0705□8BD7□□□□□□
|
7.0 |
47.0 |
20.5 |
30.0 |
|||
| CPA0805□8BD7□□□□□□
|
8.0 |
47.0 |
22.0 |
31.5 |
|||
| CPA0905□8BD7□□□□□□
|
9.0 |
47.0 |
23.5 |
33.0 |
|||
| CPA0106□8BD7□□□□□□
|
10.0 |
47.0 |
25.0 |
34.4 |
|||
| CPA0126□8BD7□□□□□□
|
12.0 |
47.0 |
27.2 |
36.6 |
|||
| CPA0156□8BD7□□□□□□
|
15.0 |
47.0 |
30.5 |
40.0 |
|||
| 300VAC ~ 350VAC
|
|||||||
| Part No.
|
Cap.
µF
|
Dimensions (mm)
|
UL
|
CUL
|
VDE
|
||
W
|
T
|
H
|
|||||
| CPA0504□6CC2□□□□□□
|
0.5
|
32.0
|
8.0
|
17.5
|
|||
| CPA0105□6CC2□□□□□□
|
1.0
|
32.0
|
11.5
|
21.0
|
|||
| CPA0155□6CC7□□□□□□
|
1.5
|
37.0
|
13.0
|
22.5
|
|||
| CPA0205□6CC7□□□□□□
|
2.0
|
37.0
|
15.0
|
24.5
|
|||
| CPA0305□6CC7□□□□□□
|
3.0
|
37.0
|
18.5
|
27.5
|
|||
| CPA0405□6CC7□□□□□□
|
4.0
|
37.0
|
21.5
|
31.0
|
|||
| CPA0505□6CD7□□□□□□
|
5.0
|
47.0
|
20.5
|
30.0
|
|||
| CPA0605□6CD7□□□□□□
|
6.0
|
47.0
|
22.5
|
32.0
|
|||
| CPA0705□6CD7□□□□□□
|
7.0
|
47.0
|
24.0
|
33.5
|
|||
| CPA0805□6CD7□□□□□□
|
8.0
|
47.0
|
26.0
|
33.5
|
|||
| CPA0106□6CD7□□□□□□
|
10.0
|
47.0
|
29.0
|
38.5
|
|||
| CPA0126□6CD7□□□□□□
|
12.0
|
47.0
|
32.0
|
41.5
|
|||
| 350VAC ~ 400VAC
|
|||||||
| Part No.
|
Cap.
µF
|
Dimensions (mm)
|
UL
|
CUL
|
VDE
|
||
W
|
T
|
H
|
|||||
| CPA0504□8CC2□□□□□□
|
0.5
|
32.0
|
9.5
|
19.5
|
|||
| CPA0804□8CC2□□□□□□
|
0.8
|
32.0
|
12.0
|
21.5
|
|||
| CPA0105□8CC7□□□□□□
|
1.0
|
37.0
|
12.0
|
21.5
|
|||
| CPA0125□8CC7□□□□□□
|
1.2
|
37.0
|
13.0
|
22.5
|
|||
| CPA0155□8CC7□□□□□□
|
1.5
|
37.0
|
13.0
|
22.5
|
|||
| CPA0205□8CC7□□□□□□
|
2.0
|
37.0
|
17.0
|
26.5
|
|||
| CPA0255□8CC7□□□□□□
|
2.5
|
37.0
|
19.0
|
28.5
|
|||
| CPA0305□8CC7□□□□□□
|
3.0
|
37.0
|
21.0
|
30.5
|
|||
| CPA0405□8CD7□□□□□□
|
4.0
|
47.0
|
20.5
|
30.0
|
|||
| CPA0505□8CD7□□□□□□
|
5.0
|
47.0
|
23.0
|
32.5
|
|||
| CPA0605□8CD7□□□□□□
|
6.0
|
47.0
|
25.0
|
34.5
|
|||
| CPA0705□8CD7□□□□□□
|
7.0
|
47.0
|
27.0
|
36.5
|
|||
| CPA0805□8CD7□□□□□□
|
8.0
|
47.0
|
29.0
|
38.5
|
|||
| 400VAC ~ 450VAC
|
|||||||
| Part No.
|
Cap.
µF
|
Dimensions (mm)
|
UL
|
CUL
|
VDE
|
||
W
|
T
|
H
|
|||||
| CPA0504□6DC2□□□□□□
|
0.5
|
32.0
|
10.5
|
20.0
|
|||
| CPA0804□6DC2□□□□□□
|
0.8
|
32.0
|
13.0
|
22.5
|
|||
| CPA0105□6DC7□□□□□□
|
1.0
|
37.0
|
13.0
|
22.5
|
|||
| CPA0125□6DC7□□□□□□
|
1.2
|
37.0
|
14.5
|
24.0
|
|||
| CPA0155□6DC7□□□□□□
|
1.5
|
37.0
|
16.5
|
26.0
|
|||
| CPA0205□6DC7□□□□□□
|
2.0
|
37.0
|
19.0
|
28.5
|
|||
| CPA0255□6DC7□□□□□□
|
2.5
|
37.0
|
27.5
|
37.0
|
|||
| CPA0305□6DC7□□□□□□
|
3.0
|
37.0
|
20.0
|
29.0
|
|||
| CPA0405□6DD7□□□□□□
|
4.0
|
47.0
|
23.0
|
32.5
|
|||
| CPA0505□6DD7□□□□□□
|
5.0
|
47.0
|
26.0
|
35.5
|
|||
| CPA0605□6DD7□□□□□□
|
6.0
|
47.0
|
28.5
|
38.5
|
|||
| CPA0705□6DD7□□□□□□
|
7.0
|
47.0
|
30.5
|
40.0
|
|||
| 450VAC ~ 500VAC
|
|||||||
| Part No.
|
Cap.
µF
|
Dimensions (mm)
|
UL
|
CUL
|
VDE
|
||
W
|
T
|
H
|
|||||
| CPA0504□8DC2□□□□□□
|
0.5
|
32.0
|
12.0
|
21.5
|
|||
| CPA0804□8DC7□□□□□□
|
0.8
|
37.0
|
13.0
|
22.5
|
|||
| CPA0105□8DC7□□□□□□
|
1.0
|
37.0
|
15.0
|
24.5
|
|||
| CPA0125□8DC7□□□□□□
|
1.2
|
37.0
|
16.0
|
25.5
|
|||
| CPA0155□8DC7□□□□□□
|
1.5
|
37.0
|
18.0
|
27.5
|
|||
| CPA0185□8DC7□□□□□□
|
1.8
|
37.0
|
20.0
|
29.5
|
|||
| CPA0205□8DC7□□□□□□
|
2.0
|
47.0
|
18.0
|
27.5
|
|||
| CPA0255□8DD7□□□□□□
|
2.5
|
47.0
|
20.0
|
29.5
|
|||
| CPA0305□8DD7□□□□□□
|
3.0
|
47.0
|
22.0
|
31.5
|
|||
| CPA0355□8DD7□□□□□□
|
3.5
|
47.0
|
24.0
|
33.5
|
|||
| CPA0405□8DD7□□□□□□
|
4.0
|
47.0
|
26.0
|
37.5
|
|||
| CPA0455□8DD7□□□□□□
|
4.5
|
47.0
|
28.0
|
37.5
|
|||
| CPA0505□8DD7□□□□□□
|
5.0
|
47.0
|
29.0
|
38.0
|
|||
| CPA0605□8DD7□□□□□□
|
6.0
|
47.0
|
31.5
|
41.0
|
|||
