C. Safety Disc (AC Capacitor)
Safety standard recognized ceramic capacitor
- Across-the-line
- Antenna coupling
- Line by-pass
Approval license and file number
| Agencies | Standard No. | Recognized File No. | Class & W.V. | Capacitance Value |
| UL | UL 1414 | E 189495, Vol.1 | AC250V | 101-103 |
| CSA | C22.2 No.1 | LR 111381-1 | AC250V | 101-103 |
| VDE | IEC384-14 2nd Ed.1993 EN132 400:1994 |
104855 | X1: 400V Y2: 250V |
101-103 |
| FIMKO | IEC384-14 2nd Ed.1993 EN132 400:1994 |
F1886 | X1: 400V Y2: 250V |
101-103 |
| SEMKO | IEC384-14 2nd Ed.1993 EN132 400:1994 |
9741064/01-02 | X1: 400V Y2: 250V |
101-103 |
| NEMNO | IEC384-14 2nd Ed.1993 EN132 400:1994 |
P97102472 | X1: 400V Y2: 250V |
101-103 |
| DEMKO | IEC384-14 2nd Ed.1993 EN132 400:1994 |
307053 | X1: 400V Y2: 250V |
101-103 |
| SEV | IEC384-14 2nd Ed.1993 EN132 400:1994 |
97,7 70742,01 | X1: 400V Y2: 250V |
101-103 |
| Items | Specification | Testing Method |
| Capacitance | To be within the spec tolerance | Test at 1±0.2Vrms |
| Dissipation Factor | Y5P Y5U: 2.5% max Y5V: 5% max |
1 KHz, 25°C |
| Insulation Resistance | I.R ≥ 10GΩ | Test at 500VDC |
| Dielectric Strength | To be with standing | 2600VAC for 60sec |
Range Chart V.S. Size
 |
 |
R.V. |
CAP. |
TOL. |
T.C. |
D. max mm |
F.± 1.0mm |
L. mm |
D.R. mm |
d± 0.5mm |
T. Mm |
250V400V(AC) |
101K |
±10 |
Y5P |
8 |
7.5 |
>25 (min) |
<3.5 |
0.6 |
<7 |
151K |
±10 |
Y5P |
8 |
7.5 |
|||||
221K |
±10 |
Y5P |
9 |
7.5 |
|||||
331K |
±10 |
Y5P |
9 |
7.5 |
|||||
471K |
±10 |
Y5P |
10 |
7.5 |
|||||
681K |
±10 |
Y5P |
10 |
7.5 |
|||||
681K |
±20 |
Y5P |
9 |
7.5 |
|||||
102M |
±20 |
Y5U |
9 |
7.5 |
|||||
152M |
±20 |
Y5U |
10 |
7.5 |
|||||
222M |
±20 |
Y5U |
11 |
7.5 |
|||||
332M |
±20 |
Y5U |
13 |
7.5 |
|||||
472M |
±20 |
Y5U |
16 |
7.5/ 10 |
|||||
472M |
±20 |
Y5V |
13 |
7.5/ 10 |
|||||
103M |
±20 |
Y5V |
20 |
7.5/ 10 |
Marking Principle
|
|

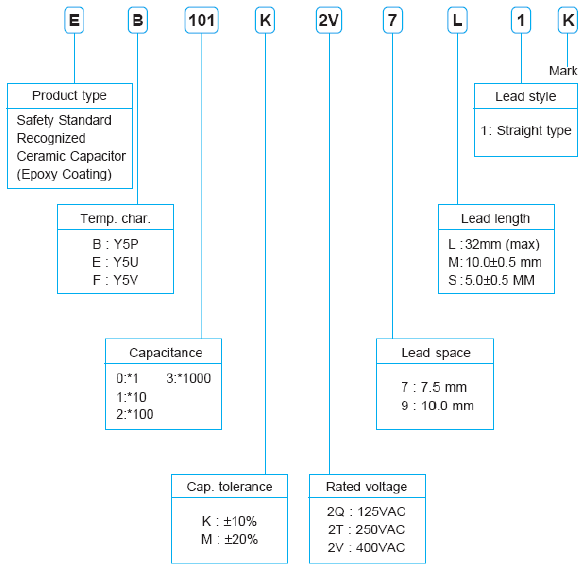

Part Number System
