Resistor Series

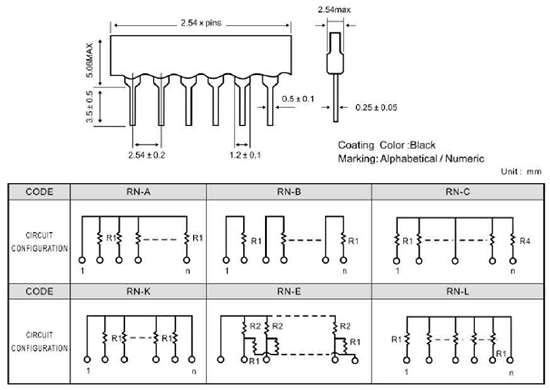

RN. Thick Film Resistor Network



Standard Configuration



Rating

Type
Per
Resistor		 One Package (Max)
5pin 6pin 7pin 8pin 9pin 10pin 11pin 12pin 13pin 14pin
RN 0.125W 0.5W 0.652W 0.75W 0.875W 1W 1.05W 1.15W 1.25W 1.35W 1.45W



Type Max Working Voltage Max Overload Voltage Rating Ambient Temp. Resistance Range Resistance Tolerance
RN 200V 280V 70°C 22Ω-2.2MΩ D.F.G.J.K



Electrical Performance

Requirement Characteristic Test Method
JIS C 5202 MIL STD 202E
Operating Temp. Range -55°C ~ +155°C - -
Max
Resistance
Changes		 Temperature coefficient ±250 ppm/°C 5.2B 304 (operating temp. range)
Short time overload 1%+0.05Ω 5.5 (MIL R 83401B 3.14)
Insulation resistance Over 104 MΩ 5.6 302A
Dielectric withstand voltage ±0.5% 5.7F -
Terminal strength Pull test ±0.5% 6.1 (1) 1 kg/10 sec 211A, A
Bend test 3 cycle & over 6.2 (4) 250g 211A, B
Resistance to soldering heat ±0.5% 6.4 260°C/10 sec 210A, B
Solderability Over 3/4 6.5 230°C/ 5 sec 208C
Life (at elevated ambient temp.) ±3% 7.2 150°C 1000hrs 108A 150°C 1000hrs
Temperature cycling 1%+0.05Ω 7.4 -40°C/85°C 102A -40°C/85°C
Moisture resistance ±3% 7.9 1000hrs 103B at rated V. 1000hrs
Load life ±3% 7.10 1000hrs 108A at 70°C rated V. 1000hrs



Film
