Resistor Series

MF. Metal Film Resistor

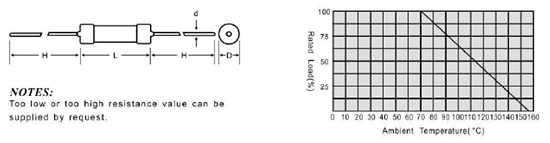

Dimension



Specification

Type MIL Type Power Rating Max Working Voltage Max Overload Voltage Dimension (mm)
L D H d±0.05
MF-1/6 RN-50 1/6W, 1/8W 200V 400V 3.2±0.2 1.8±0.2 28±2.0 0.43
MF-1/4 RN-55 1/4W 250V 500V 6.5±0.5 2.3±0.5 28±2.0 0.50
MF-1/2 RN-60 1/2W 350V 700V 9.5±0.5 3.2±0.5 26±2.0 0.60
MF-1 RN-65 1W 500V 1000V 11.5±1.0 4.5±0.5 35±3.0 0.70
MF-2 RN-70 2W 500V 1000V 15.5±1.0 5.0±0.5 33±3.0 0.75



Resistance Range

Type Tolerance TC ±15ppm
TC ±25ppm		 TC ±50ppm TC ±100ppm Resistance Range
MF-1/6W ±1% 100Ω~100KΩ 10Ω~1MΩ 10Ω~1MΩ Standard 10Ω~1MΩ
±0.5% 100Ω~100KΩ 51.1Ω~200KΩ 51.1Ω~511KΩ
±0.25% 100Ω~100KΩ 51.1Ω~200KΩ 51.1Ω~511KΩ
±0.1% 100Ω~100KΩ - -
MF-1/4W ±1% 51.1Ω~511KΩ 10Ω~1MΩ 10Ω~1MΩ
±0.5% 51.1Ω~511KΩ 10Ω~1MΩ 10Ω~1MΩ
±0.25% 100Ω~330KΩ 51.1Ω~330KΩ -
±0.1% 100Ω~100KΩ - -
MF-1/2W ±1% 51.1Ω~1MΩ 10Ω~2.2MΩ 10Ω~1MΩ
±0.5% 51.1Ω~1MΩ 10Ω~1MΩ 10Ω~1MΩ
±0.25% 100Ω~511KΩ 51.1Ω~511KΩ -
±0.1% 100Ω~330KΩ - -
MF-1W ±1% 51.1Ω~1MΩ 10Ω~2.2MΩ 10Ω~1MΩ
±0.5% 51.1Ω~1MΩ 10Ω~1MΩ 10Ω~1MΩ
±0.25% 100Ω~511KΩ 51.1Ω~511KΩ -
±0.1% 100Ω~330KΩ - -
MF-2W ±1% 51.1Ω~1MΩ 10Ω~2.2MΩ 10Ω~1MΩ
±0.5% 51.1Ω~1MΩ 10Ω~1MΩ 10Ω~1MΩ
±0.25% 100Ω~511KΩ 51.1Ω~511KΩ -
±0.1% 100Ω~330KΩ - -



Electric Performance

Test Item Condition Spec.
Operating temperature -30°C ~ +155°C -
Load life 70°C at rated power 1.5hrs on, 0.5hr off, for 1000hrs ±(3%+0.05Ω)
Short-time overload 2.5 times of RCWV for 5 sec ±(1%+0.05Ω)
Intermittent overload voltage At 3 times RCWV 1 sec on, 25 sec off, for 1000 cycles ±(3%+0.05Ω)
Moisture-proof load life 40°C 95% RH 1.5hrs on, 0.5hr off, for 1000hrs ±(3%+0.05Ω)
Dielectric withstand voltage Max overload voltage 1 min ±(0.5%+0.05Ω)
Insulation resistance D.C. 500V 1000MΩ
Solder heat resistance 350°C for 3.5 sec ±(1%+0.05Ω)
Temperature cycling -30°C / +85°C for 5 cycles ±(1%+0.05Ω)

* Total resistance change: (∆R%+0.05Ω)
