Resistor Series

Other. KNP / MOF / FR / MF / CF - Other Types

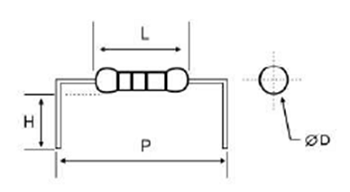

M Type



Watt Dimension (mm)
ØD L P±1.0 H±1.0
1/6W; 1/4WS 1.5±0.2 3.2±0.2 6.0 8
1/4W; 1/2WS 2.3±0.5 6.5±0.5 10.0 8
1/2W; 1WS 3.2±0.5 9.5±0.5 12.5 10
1W; 2WS 4.5±0.5 11.5±1.0 15.0 10
2W; 3WS 5.0±0.5 15.5±1.0 20.0 10
3W; 5WS 6.0±0.5 17.5±1.0 25.0 10
5W 8.0±1.0 24.5±1.0 30.0 10

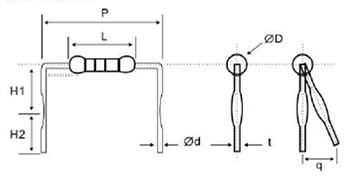

MB Type



Watt Dimension (mm)
ØD L P±1.0 H1±1.0 H2±1.0 d±0.05 t±0.2 q max
1/2W; 1WS 3.2±0.5 9.5±0.5 12.5/15 10.5 4.5 0.60 1.20 3
1W; 2WS 4.5±0.5 11.5±1.0 15.0 10.5 4.5 0.75 1.25 3
2W; 3WS 5.0±0.5 15.5±1.0 20.0 10.5 4.5 0.75 1.25 3
3W; 5WS 6.0±0.5 17.5±1.0 25.0 10.5 4.5 0.75 1.25 3
5W 8.0±1.0 24.5±1.0 30.0 10.5 4.5 0.75 1.25 3

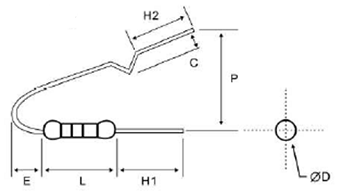

FK Type



Watt Dimension (mm)
ØD L P±2.0 E Max H1±1.0 H2±Max
1/2W; 1WS 3.2±0.5 9.5±0.5 6 3.5 5 ~ 8 7
1W; 2WS 4.5±0.5 11.5±1.0 8 3.5 5 ~ 8 7
2W; 3WS 5.0±0.5 15.5±1.0 8 3.5 5 ~ 8 7
3W; 5WS 6.0±0.5 17.5±1.0 8 3.5 5 ~ 8 7

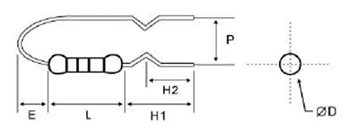

FKK Type



Watt Dimension (mm)
ØD L P±1.0 E Max H1±1.0 H2±1.0
1/2W; 1WS 3.2±0.5 9.5±0.5 5 ~ 7 3.5 8 4.5
1W; 2WS 4.5±0.5 11.5±1.0 5 ~ 9 3.5 8 4.5
2W; 3WS 5.0±0.5 15.5±1.0 5 ~ 9 3.5 8 4.5
3W; 5WS 6.0±0.5 17.5±1.0 5 ~ 10 3.5 8 4.5
