Resistor Series

MOF. Metal Oxide Film Resistor

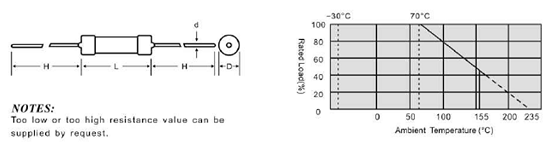

Dimension



Specification

Power Rating Max Working Voltage Max Overload Voltage Dimension (mm) Resistance Range
L D H d±0.05
1/4W 250V 400V 6.5±0.5 2.3±0.5 28±2.0 0.50 Standard

1Ω - 150KΩ

1/2WS 250V 400V 6.5±0.5 2.3±0.5 28±2.0 0.50
1/2W 250V 400V 9.5±0.5 3.2±0.5 26±2.0 0.60
1WS 350V 600V 9.5±0.5 3.2±0.5 26±2.0 0.60
1W 350V 600V 11.5±1.0 4.5±0.5 35±3.0 0.70
2WS 350V 600V 11.5±1.0 4.5±0.5 35±3.0 0.70
2W 350V 600V 15.5±1.0 5.0±0.5 35±3.0 0.75
3WS 350V 600V 15.5±1.0 5.0±0.5 33±3.0 0.75
3W 500V 800V 17.5±1.0 6.0±0.5 38±3.0 0.75
5WS 500V 800V 17.5±1.0 6.0±0.5 38±3.0 0.75
5W 750V 1000V 24.5±2.0 8.0±1.0 35±3.0 0.75



Electrical Performance

Test Items Condition Spec
Adhesion solderability 230°C±5°C for 3+0.5 sec 95%
Resistance Temp. Coeff. -30°C ~ +155°C ±350PPM/°C
Short time overload 2.5 times of RCWV for 5 seconds ±(2%+0.05Ω)
Dielectric withstand voltage Max overload voltage 1 minute ±(0.5%+0.05Ω)
Temperature cycling -30°C/+85°C for 5 cycles ±(1%+0.05Ω)
Insulation resistance D.C. 500V 1000MΩ
Moisture-proof load life 40°C 95% RH 1.5hrs on, 0.5hr off, cycle for 1000hrs ±(5%+0.05Ω)
Intermittent overload voltage At 4 times RCWV 1 sec on, 25 sec off, for 1000 cycles ±(5%+0.05Ω)

* RCWV: Rated continuous working voltage
