KNP. Wire Wound Resistor

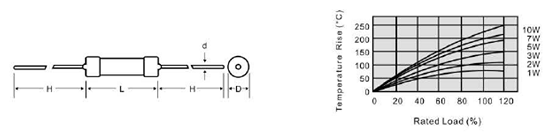

Dimension



Specification

Power Rating Dimension (mm)
L D H d±0.05
1/2W 9.5±0.5 3.2±0.5 26±2.0 0.60
1WS 9.5±0.5 3.2±0.5 26±2.0 0.60
1W 11.5±1.0 4.5±0.5 35±3.0 0.70
2WS 11.5±1.0 4.5±0.5 35±3.0 0.70
2W 15.5±1.0 5.0±0.5 33±3.0 0.75
3WS 15.5±1.0 5.0±0.5 33±3.0 0.75
3W 17.5±1.0 6.0±0.5 38±3.0 0.75
4W 17.5±1.0 6.0±0.5 38±3.0 0.75
5WS 17.5±1.0 6.0±1.0 38±3.0 0.75
5W 24.5±1.0 8.0±1.0 35±3.0 0.75
7W 32.5±1.0 8.0±1.0 35±3.0 0.75
8W 42.5±1.0 8.0±1.0 35±3.0 0.75
10W 53.5±1.0 8.0±1.0 35±3.0 0.75



Electric Performance

Test Item Condition Spec.
Adhesion solderability 230°C±5°C for 3+0.5 sec 95%
Short-time overload 2.5 times of RCWV for 5 sec ±(2%+0.05Ω)
Resistance temp. coeff. -30°C ~ +155°C ±20~1300 PPM/°C
Moisture-proof load life 40°C 95% RH 1.5hrs on, 0.5hr off, for 1000hrs ±(5%+0.05Ω)
Dielectric withstand voltage Max overload voltage 1 min ±(0.5%+0.05Ω)
Insulation resistance D.C. 500V 1000MΩ
Temperature cycling -30°C / +85°C for 5 cycles ±(1%+0.05Ω)

* RCWV: Rated Continuous Working Voltage
