Resistor Series

DQ. Non Flammable Wave-Shape Ribbon-Wound

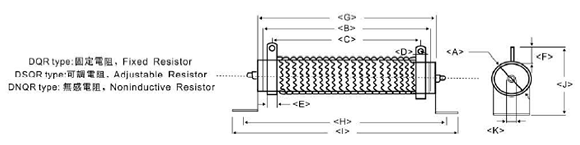

Dimension



Specification

Power Rating Dimension (mm) Resistance Range
A±1 B±2 C±2 D±0.1 E±0.2 F±1 G±2 H±2 I±2 J±2 K±0.1
DQR-75W 25 110 92 5.2 8 19 120 142 164 58 6 0.1Ω~8KΩ
DQR-90W 28 90 72 5.2 8 17 101 123 145 60 6 0.1Ω~9KΩ
DQR-120W 28 110 92 5.2 8 17 121 143 165 60 6 0.2Ω~12KΩ
DQR-150W 28 140 123 5.2 8 17 151 173 195 60 6 0.2Ω~15KΩ
DQR-180W 28 160 142 5.2 8 17 171 193 215 60 6 0.2Ω~18KΩ
DQR-225W 28 195 177 5.2 8 17 206 229 250 60 6 0.2Ω~20KΩ
DQR-240W 35 185 167 5.2 8 17 197 219 245 75 8 0.5Ω~25KΩ
DQR-300W 35 210 192 5.2 8 17 222 242 270 75 8 0.5Ω~30KΩ
DQR-375W 40 210 188 5.2 10 18 222 242 270 77 8 0.5Ω~40KΩ
DQR-450W 40 260 238 5.2 10 18 272 292 320 77 8 0.5Ω~45KΩ
DQR-600W 40 330 308 5.2 10 18 342 380 390 77 8 0.5Ω~60KΩ
DQR-750W 50 330 304 6.2 12 28 346 367 399 105 9 0.5Ω~75KΩ
DQR-900W 50 400 374 6.2 12 28 416 437 469 105 9 1Ω~90KΩ
DQR-1000W 50 460 425 6.2 12 30 480 504 533 105 9 1Ω~100KΩ
DQR-1200W 60 460 425 6.2 15 30 480 504 533 112 10 1Ω~120KΩ
DQR-1500W 60 540 505 6.2 15 30 560 584 613 112 10 1Ω~150KΩ
DQR-2000W 65 650 620 6.2 15 30 667 700 715 115 10 1Ω~200KΩ
