Resistor Series

AL. Large Capacity Metal-Clad Wire Wound Resistor

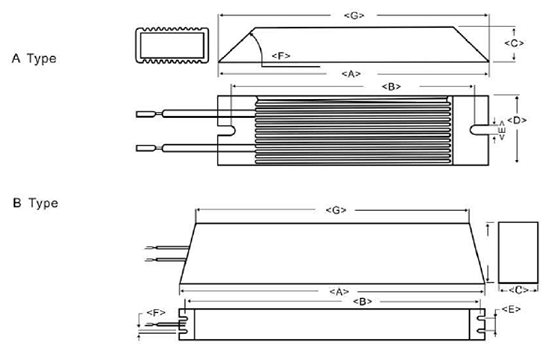

Dimension



Specification

Power Rating (W) Dimension (mm) Type Resistance Range
A±2 B±2 C±1 D±1 E±1 F±1 G±2
AL - 60W 115 100 20 40 5.2 45° 75 A 0.1~10K
AL - 80W 140 125 20 40 5.2 45° 100 A 0.1~10K
AL - 100W 165 150 20 40 5.2 45° 125 A 0.1~10K
AL - 120W 190 175 20 40 5.2 45° 150 A 0.15~15K
AL - 150W 215 200 20 40 5.2 45° 175 A 0.15~15K
AL - 200W 165 150 30 60 5.2 60° 125 A 0.3~20K
AL - 300W 215 200 30 60 5.2 60° 175 A 0.5~30K
AL - 400W 265 250 30 60 5.2 60° 225 A 0.5~30K
AL - 500W 240 225 40 80 5.2 60° 200 A 0.5~30K
AL - 600W 335 320 30 60 5.2 60° 295 A 1~50K
AL - 800W 400 385 40 80 5.2 60° 360 B 1~50K
AL - 1000W 400 385 50 100 30 5.2 380 B 1~100K
