Resistor Series

AH. Aluminum Housed Wire Wound Resistor

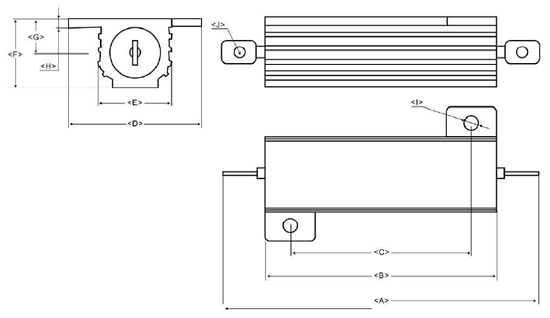

Dimension



Specification

Power Rating (W) Dimension (mm) Resistance Range
A±1 B±1 C±0.8 D±1 E±1 F±1 G±1 H±0.2 I±0.3 J±0.1
AH - 5W 25 15.3 11.3 16.5 8.5 8.2 2.2 1.6 2.4 2.2 1~5K
AH - 10W 29 19.0 14.3 20.4 10.0 10.0 5.0 2.0 2.0 2.2 1~10K
AH - 25W 53 27.5 18.6 27.0 14.9 14.9 6.5 2.2 3.2 2.2 1~25K
AH - 50W 70 51.0 39.2 29.2 16.0 15.5 7.0 2.0 3.2 2.2 1~50K
AH - 85W 95 75.0 38.0 29.3 18.8 15.5 7.0 2.2 3.4 2.2 1~85K
AH - 100W 122 90.0 70.0 72.0 16.5 45.0 20 5.0 5.2 m5*25 1~100K
